Square Hole Size SS Wire Mesh With Plain Weave Corrosion Resistance

Price Negotiable

Price: Negotiable

MOQ: 1 square meter

Delivery Time: in 3 days for goods in stock

Brand: PFM

Product Description

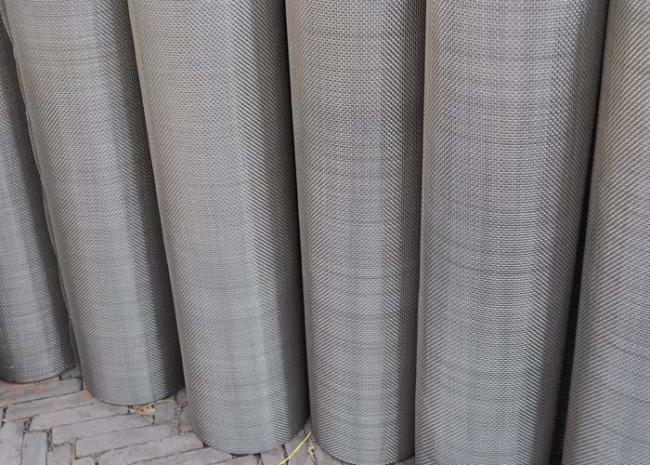

Square Hole Size Stainless Steel Wire Mesh With Plain Weave

Decription of stainless steel wire mesh:

Material: SS 201,202,304, 304L, 316, 316L, 430, 321. Etc.

Mesh:1-1500mesh

Aperture:0.022mm-23.37mm

Diameter:0.02-3.0mm

Weave types: Plain weave, twill weave, Dutch weave, Five Heddle weave,crimped mesh

Features of stainless steel wire mesh

Filtering capabilities:Filtration range of 1μ-200μ, has a reliable filter performance

Washability:Easy to clean,especially suitable for backwashing
Tractability: suitable for cutting, bending, stamping, drawing, welding and other processes.
Stability: Because there are two layers to protect the screen which make filters is not easily to deform.
Resist high temperature:480 °C can withstand high temperatures.
Corrosion resistance: As a result of SUS316L, 304 materials, the corrosion resistance.
High mechanical strength and compressive strength

Applications of stainless steel wire mesh:

with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc

Specifications of stainless steel wire mesh:

Stainless Steel Wire Mesh Specification
Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(kg/Square meter)
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(kg/Square meter)
1×1	0.080	2.03	0.920	23.37	92.0	2.0
2×2	0.063	1.6	0.437	11.1	87.4	2.5
3×3	0.054	1.37	0.279	7.09	83.8	2.7
4×4	0.047	1.2	0.203	5.16	81.2	2.7
5×5	0.041	1.04	0.159	4.04	79.5	2.6
10×10	0.024	0.6	0.076	1.94	74.9	1.8
12×12	0.020	0.5	0.064	1.62	75.9	1.5
14×14	0.020	0.5	0.052	1.314	71.9	1.75
16×16	0.018	0.45	0.045	1.137	71.2	1.6
18×18	0.016	0.4	0.0398	1.01	69.4	1.4
20×20	0.009	0.24	0.041	1.03	76.0	0.57
20×20	0.012	0.3	0.0382	0.97	72.2	0.9
30×30	0.012	0.3	0.0215	0.547	63.9	1.35
30×30	0.0094	0.24	0.0243	0.62	72.1	0.84
40×40	0.0098	0.25	0.015	0.385	36.74	1.25
50×50	0.0079	0.2	0.0121	0.308	36.7	1.0
60×60	0.0047	0.12	0.012	0.303	71.6	0.42
60×60	0.0059	0.15	0.0107	0.273	64.5	0.65
80×80	0.0047	0.12	0.0078	0.198	38.7	0.58
80×80	0.0055	0.14	0.0069	0.177	45.5	0.76
100×100	0.0039	0.1	0.006	0.154	59.8	0.50
100×100	0.0043	0.11	0.0056	0.144	55.1	0.60
120×120	0.0027	0.07	0.0056	0.142	67.7	0.29
120×120	0.0031	0.08	0.0052	0.132	38.7	0.38
150×150	0.0024	0.06	0.0043	0.109	41.6	0.27
165×165	0.0018	0.45	0.0043	0.109	50	0.167
180×180	0.0019	0.05	0.0036	0.091	64.5	0.22
180×180	0.0023	0.06	0.0032	0.081	57.4	0.32
200×200	0.0019	0.05	0.003	0.077	60.6	0.24
200×200	0.0024	0.06	0.0026	0.067	52.7	0.35
250×250	0.0012	0.03	0.0028	0.072	49.8	0.11
250×250	0.0016	0.04	0.0024	0.062	36.9	0.20
270×270	0.0014	0.035	0.0023	0.059	60	0.16
270×270	0.0016	0.04	0.0021	0.054	57.4	0.21
300×300	0.0012	0.03	0.0022	0.055	57	0.13
325×325	0.0014	0.035	0.0017	0.0432	55.3	0.20
400×400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500×500	0.0009	0.025	0.001	0.0258	50.7	0.15
635×635	0.0007	0.018	0.0008	0.022	55	0.10
