Heat Resistance Stainless Steel Wire Mesh Conveyor Belt With Chain
Heat Resistance Stainless Steel Wire Mesh Conveyor Belt With Chain
Features of wire mesh conveyor belt:
- Open mesh construction for quick drainage and free air circulation.
- A smooth, flat surface.
- Sanitary -- easily cleaned.
- Easy replacement of damaged or worn sections.
- Endless splicing.
- Economical versus alternative metal conveyor belt
- can working at low to high temperatures
- resistant to acid, alkaline, chemical corrosion, abrasion
- smooth conveying surface
- long service life
Material of wire mesh belt:
stainless steel 304 316 316L 430 310 ,carbon steel and galvernized steel and so on.
Description
The mesh conveyor belt is produced using right and left spiral connecting and crimped connecting rod to form balance weave ,which is tracking streight.
Spiral wire link mesh belt is the most widely used mesh belt.It can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable openning size.
The round end of spiral wire balanced belt allow goods on it transfer to the following stage processing very easily.
spiral wire belt is also can be used to transport in glass furnace,at the same time, it can be use as decorative dividers in architecture and safty curtain

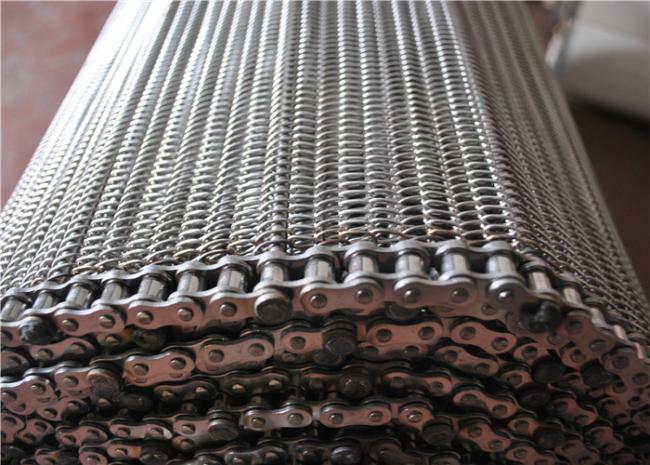

Spiral wire belt with chain has advantage of positive driving ,running streight charactor
The material of the wire mesh belt can be stainless steel 304,316,316L,310,430,2080 ,carbon steel and galvanized steel.
Type of wire mesh belt:
1. material:stainless steel 201/304/316/316L
2. wire diameter:0.8-3.0mm
3. mesh width: 150 ~ 5500mm
4. mesh belt speed: 0.15 ~ 0.50m/min
5. using temperature: -40 ~ 1300
6. the edge of the form: curved edge, upsetting head, welding and other forms.
7. Shape:herringbone mesh belt,hook flower mesh belt,diamond mesh belt,etc.
8. waterproof paper,in plywood case or as customer's requirements
Advantage of wire mesh conveyor belt:
- corrosion resistant,both acid and alkali resistant
- high temperature resistant,can bear 2000 degree centigrade
- heavy loading,rod can be added to increase its loading weight.
Applications of wire mesh conveyor belt:
- conveyor belt in freezing and cooling tunnels
- conveyor belt in confectionery and chocolate industry
- cooling belt in bakeries
- conveyor belt in the chemical industry
- supporting belt in special driers
- conveyor plotting belt in special discharging towers at ports and airports,
- pasteurizing belt, cooking belt, spiral freezerbelt,
- pizza conveyor belt
- cooling and carrying-away belt in glassworks
- conveyor belt to hardening and tempering furnaces
Before sending inquiry ,the following wire mesh belt information need to be told:
| material | such as stainless steel 304,316,316L,310,430 and so on |
| datas | spiral wire diameter,string wire diameter,pitches of spiral wire,string wire,rod daimeter,width and length |
| requriement | such as working temperature,laoding weight |
| size of the belt | wide and length can be designed according to customer`s requriement. |
Or you can refer to the following wire mesh conveyor belt drawing when supply us information before our quotation:
