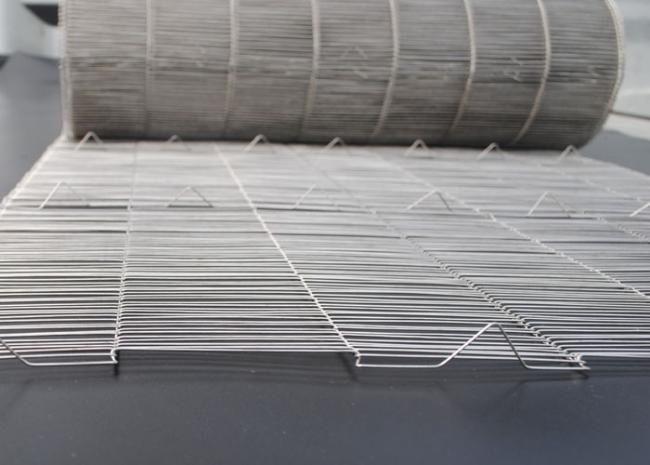

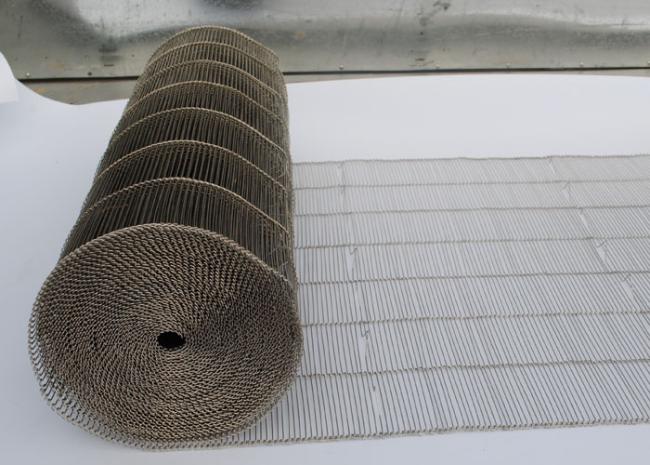

304 Stainless Steel Wire Mesh Belt , Ladder Conveyor Belt For Ovens
304 Stainless Steel Flat Flex Wire Mesh Ladder Conveyor Belt For Ovens
1. Description :
Stainless Steel Mesh Flat flex belts are made of stainless steel wire of spring wire. Wire diameters varies from 0,9 until 3.2mm. Pitches from 4 mm until 22.23mm, and belt widths from 10 mm until 3 metre. We a big range of standard dimensions, but can make all the (non standard) dimensions too because of the multi adjustable production machinery. Belts executed with single loop (most common) or double looped edges for special occasions.
2. Feature :
1) Has good resistance to corrosion, wear resistance, high temperature and other properties.
2) A satisfactory shrink, anti-oxidation, anti-fracture properties in the negative temperature and high temperature.
3) Reasonable design, compact structure, size and more easy to install, run-time stable, non-run edge, the flexible use.
3. Specification :
| Material | iron steel Q195 or 235, stainless steel 201, 304, 316L, 430 |
| Pitch(mm) | 5 8 7 7 10 13 15 15 18 20 20 20 19.5 |
| Wire diameter(mm) | 1.0 1.0 1.2 1.4 1.6 1.8 2.0 2.3 2.6 3.0 3.2 3.5 5.0 |
| Min span(mm) | 30 30 30 30 30 40 40 50 60 100 130 150 300 |
| Edge loop | single loop, double loop, c cure edge |
| Overall width(mm) | 30-4200mm |
4. Applications :
It Widely used in roasting foodstuff,printing,electronics ,cold storage ,metal heat treatment ,power plant,pharmacy plant, non-woven cloth factory,glass and ceramic factory, conveyor machinery and conveyor lines in many industries.
