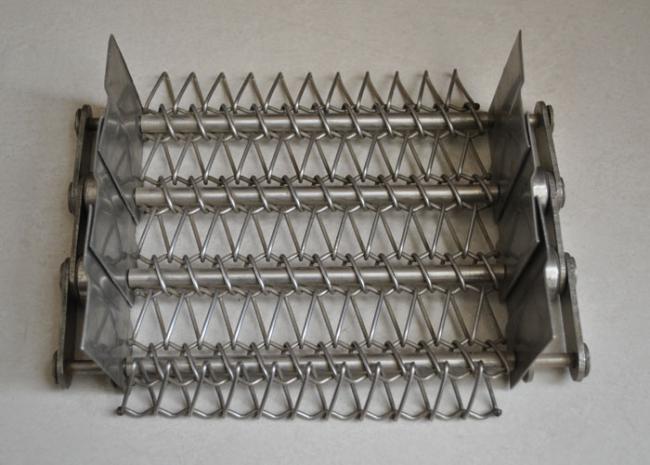

Seafood Frozen 304 Stainless Steel Spiral Wire Mesh Conveyor Belt

1. Description :

Spiral mesh belt is a mesh belt conveyors are mainly used for heavy transmissions.
For example, transferring products through tempering or cooling ovens or when hot products are handled and conveyed. The chain belts are usually made from either steel or stainless steel with varying degrees of weave and pitch position. This chain belt use chain drive rod for large and heavy transmission. It has smooth movement and powerful mesh surface, capable of conveying large and heavy stuff. The chain driven structure allows light force of the surface, protect the wire mesh and gives a long service life.

2. Specification :

3. Applications :

Food industry: often used in light weight products processing - frying, freezing, heating, cooling, cooking, drying, baking, coating, enrobing and sterilization for desserts, pizza, vegetables, bread, flour cakes, meat, fish, candy, potatoes, biscuits, chocolate, nuts, fruit, etc. Like chocolate enrobing, battering and breading, freezing for seafood processing, frying chickens, cooling wafer after coating, pizza baking.
Electronics industry: printed circuit board required minimum contact support, melting, sold or drying welding.
Caps making industry: drying for drop plastic
Others, like textiles, glass heat treatment, printing and dyeing, radio, scientific research applications.

4. Available materials :

1) AISI 314 (1150°C)
2) SUS 310S (1090°C)
3) SUH 330 (1150°C)
4) SUS 304 (870°C)
5) Super alloy Cr20Ni80 (1250°C) electrical furnace wire
6) SUS 321 (750°C)
7) SUS 410 (700°C)
8) SUS 430 (700°C)
9) Various metal materials as per your requirements
