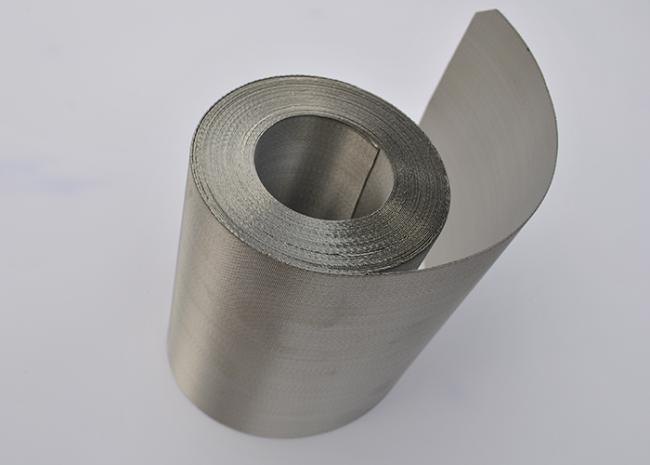

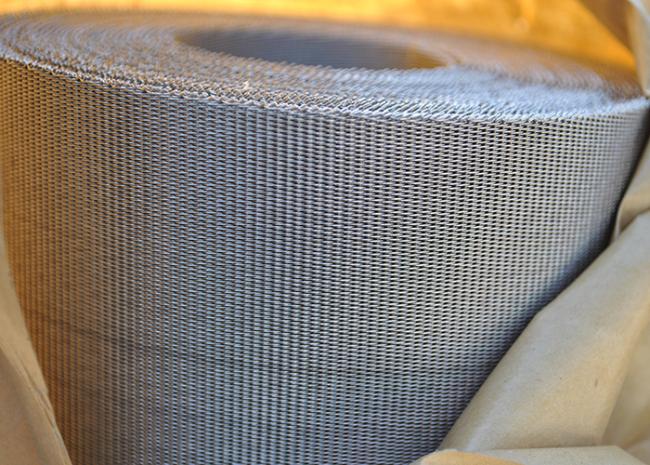

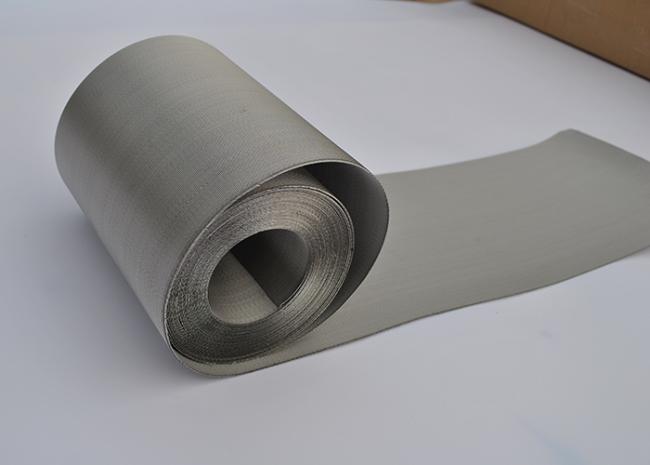

Aisi 304 Twill Dutch Stainless Steel Wire Mesh Filter Screen Belt For Plastic Extruder
AISI 304 Stainless Steel Twill Dutch Wire Mesh Filter Screen Belt For Plastic Extruder
1. Description :
1) Material: stainless steel 302 304 316 316L
2) Mesh count per inch:72-260
3) Width:0.75-1.2m
4) Length:10-20m per roll
5) Filtering rate:300-70micron
6) MAX working pressure:380bar
7) Weave:plain,twill
2. Specification :
|
Mesh (warp x weft) |
Wire diameter (warp x weft) mm |
| 72/15 | 0.45/0.55 |
| 120/15 | 0.35/0.45 |
| 132/17 | 0.32/0.45 |
| 150/17 | 0.3/0.45 |
| 152/24 | 0.27/0.4 |
| 200/40 | 0.17/0.27 |
| 260/40 | 0.15/0.25 |
3. Application :
It mainly used in filtering of plastic wire drawing bench,wire drawing machine,coating machine,such as plastic bags,plastic film and so on.
4. Packing :
Paper per roll, and then wooden case outside.
5. Delivery :
It can be shipped by sea or air, and we have DDP service, or it also can be shipped by express, such as TNT DHL FEDEX UPS SF EMS,etc.
