Syntax UBM316 IP66 Waterproof Industrial Socket Outlet Box with 16A 3P 220V and Nickel Plated Brass Contacts
Price:
Negotiable
MOQ:
1pc
Delivery Time:
15 days
Brand:
PowerSyntax
Product Description
Syntax UBM316 Single Phase Industrial Socket Outlet Box
Industrial-grade 16A/3P 220V socket outlet box with IP66 waterproof rating. Dimensions: 101×294×135mm.
Technical Specifications
| Attribute | Value |
|---|---|
| Box Type | UBM Series Industrial Socket Outlet Box IP66 |
| Color | Electric Grey |
| Dimensions | 101×294×135mm |
| Incoming Main Switch | Direct connect through cable gland at top/bottom, protected by 1P 16A MCB |
| Outgoing Breaker 1 | 1×3P 16A 220V IP67 Panel Mounted Angled Socket, protected by main switch |
| Brand Components | Distribution Box by Syntax; Industrial Plugs & Sockets by PowerSyntax; Breakers by CHINT |

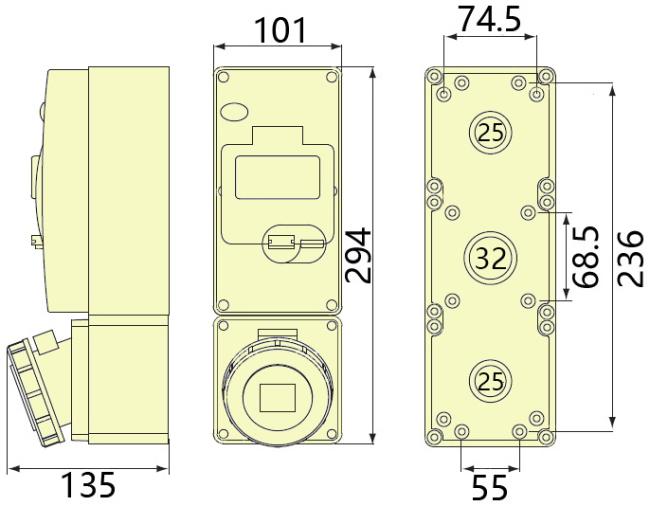

Product Diagrams
Key Features & Benefits
- Designed based on EN 61439-4 standards
- Waterproof and shockproof design with IP65/IP66 ingress protection
- Electric Grey color with customization options available
- PC (Polycarbonate Resin) material construction
- Operating temperature range: -20℃ to +75℃
- MCB/RCD/RCBO protection options
- No additional wiring required
- Cable entry from top or bottom
- Space for future modifications
- Installation options: fixed or portable with lockable front cover
- Individual segregation of outlets
- IP67 industrial socket rating
Distribution Box Advantages
- Quick assembly and dismantling
- Safe and reliable connections
- Reusable components
- Suitable for indoor and outdoor use
- Robust construction
- Easy handling and system management
- 24-month warranty on all parts and manufacturing defects
Product Specifications
Pre-wired combination units feature one IEC/CEE socket on the front with ample connection space. Incoming cable access through top and bottom knockouts with supplied glands. Available with 1P 16A MCB and 3P 16A panel mounted angled socket IP67. Other configurations include 4P 16A, 5P 16A, 3P 32A, 4P 32A and 5P 32A sockets. Protection options include MCB, RCD, or RCBO based on requirements.
Material Performance
Constructed from PA6/PA66 Nylon material - a superior quality, toughened thermoplastic with excellent characteristics:
- Abrasion resistant
- Self-extinguishing
- Heat and cold temperature resistant
- Wear resistant
- Excellent electrical insulation properties
Applications
Ideal for various industrial and commercial applications including:
- Public Infrastructure: Urban rail transit, power stations, ports, airports, tunnels, construction sites
- Manufacturing: Metal processing, power plants, steel works, automobile manufacturing
- Communication: 4G/5G equipment, GPS, WiFi systems
- Electronics & Food: Automated production lines
- Entertainment: Concerts, stadiums, presentation venues
- Civil: Hospitals, schools, banks, shopping malls
- Electric Vehicles: Charging systems and distribution
Syntax by Zhejiang Hyper Electrical Supplies delivers high-quality portable power distribution solutions from 16A up to 630A. Our products feature cutting-edge technology, sophisticated design, and professional manufacturing for reliable electrical distribution in demanding environments.
