Anti Corrosion 230V Industrial Socket Outlet Screwless Housing Connection
Price:
Negotiable
MOQ:
500pcs
Delivery Time:
15 days
Brand:
HYPER
Product Description
3P16A IP 44 Weather Protection Panel Mounted Receptacles with Blue Cover and base Industrial Socket Outlet part no. 101
Description:
- Reliable contacts prevent stops and power breaks, which leads to increased productivity.
- Tough & Safe are products for demanding applications and environments.
- The cases and inlets are made of high grade plastic nylon 66
- Screwless housing connection with snap fastening
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 16A | 3 | 100 | 101 | 102 | 2169 | 2241 | 10 | 183 | |
| 4 | 103 | 104 | 105 | 106 | 107 | 108 | 10 | 235 | |
| 5 | 109 | 110 | 111 | 2000 | 288 | 2199 | 10 | 257 |

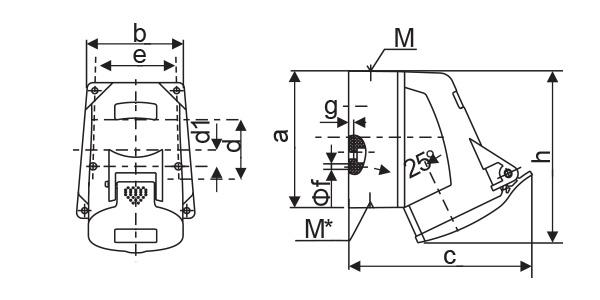

| Current | Poles | a | b | c | d | d1 | e | f | g. | h | M | m* |
| 16A | 3 | 87 | 64 | 110 | 40 | 50 | 4.5 | 4 | 115 | 20 | can use 1PC M20 CABLE GLAND |
|
| 4 | 100 | 75 | 125 | 11 | 59 | 5 | 4 | 125 | 20 | |||
| 5 | 100 | 75 | 131 | 11 | 59 | 5 | 4 | 128 | 20 | |||
| Conductor cross-sectional area(mm²)Min To Max 1.5-2.5 |
||||||||||||
Product Dimension:
