Low Voltage Industrial Socket Outlet Connector 40 - 50V Rated Voltage
Price:
Negotiable
MOQ:
500pcs
Delivery Time:
15 days
Brand:
HYPER
Product Description
3P32A IP44 Weather-protected Low Voltage Connector 40-50V 3rd Generation Industrial Socket part no. 702
Sockets with safety transformers:
The Extra-low Voltage Industrial Plugs and Sockets Series, for any tertiary and industrial plants and, especially, for combined use with other power systems installed in different ways: one by one, through modular bases or on Kaedra system socket enclosures;
For installations in heavy industry or agricultural environments, where they are exposed to aggressive chemical agents, oils and grease and frequent jets of water or accidental shocks.
Part no. 702
Technique Parameter:
| Current | Poles | 20-25V 50a.60Hz |
40-50V 50a.60Hz |
20-25V 40-50V 100-200Hz |
20-25V 40-50V 300Hz |
20-25V 40-50V 400Hz |
20-25V 40-50V 400-500Hz |
Package Unit | Weight |
| 12h | 12h | 4h | 2h | 3h | 11h | PCS/BOX | G/PC | ||
| 32A | 2 | 694 | 695 | ||||||
| 3 | 701 | 702 | 703 | ||||||
| Current | Poles | a | b | c | d | e | f | ||||||||
| 32A | 2 | 140.6 | 114.8 | 34.9 | 47 | 54 | 66.8 | ||||||||
| 3 | 140.6 | 114.8 | 34.9 | 47 | 54 | 66.8 | |||||||||
| Conductor cross-sectional area(mm²)Min To Max 4-6 | |||||||||||||||

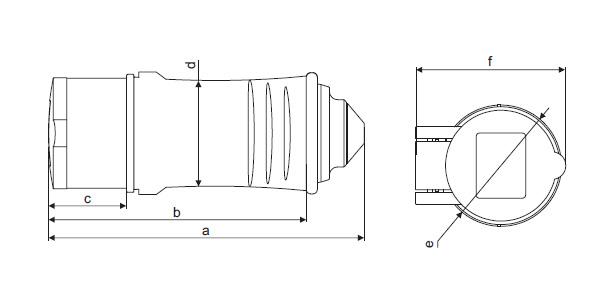

Product Dimension:
