Red Cover Industrial Plug Sockets 32Amp Rated Current Nylon Material
Price:
Negotiable
MOQ:
500pcs
Delivery Time:
15 days
Brand:
HYPER
Product Description

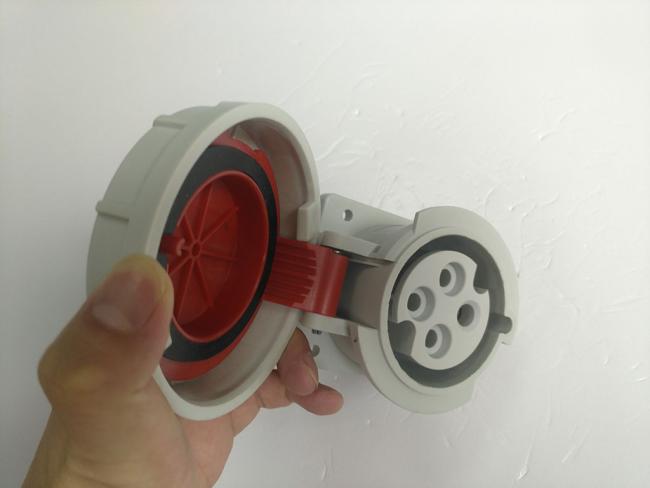

4P 32A IP67 Weather Resistant Panel Mounted Straight Receptacle Industrial Sockets with Red Cover part no. 234
Industrial Plug And Socket Advantage.
The base materials are NYLON6, which provides good features for the products, such as good insulating, resistant against most chemicals and salt-water, extremely cold-proof and almost unbreakable. For the advanced design they are suitable to be used in special environment, where IP44 or IP67 protection degree is required.
Part no. 234
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400- 440V |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 32A | 3 | 229 | 230 | 231 | 10 | 268 | ||||
| 4 | 232 | 233 | 234 | 2123 | 235 | 236 | 237 | 10 | 290 | |
| 5 | 238 | 239 | 240 | 10 | 319 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | |
| 32A | 3 | 85 | 75 | 70 | 60 | 60 | 5.5 | 8 | 2 | 99 | 103 | 34 | 62 | |
| 4 | 85 | 75 | 70 | 60 | 60 | 5.5 | 8 | 2 | 99 | 103 | 34 | 62 | ||
| 5 | 85 | 75 | 72 | 60 | 60 | 5.5 | 8 | 2 | 105 | 110 | 34 | 65 | ||
| Conductor cross-sectional area(mm²)Min To Max 4-6 | ||||||||||||||
Picture:
