Rainproof Industrial Plug Sockets 785g Light Weight Dimensional Accuracy
Price:
Negotiable
MOQ:
500pcs
Delivery Time:
15 days
Brand:
HYPER
Product Description
5P 63Amps IP44 Rainproof Red Connector with Red Cover 3rd Generation Industrial Socket Outlet part no. 1245
Features:
- Rugged design
- Enhanced performance
- Dimensional accuracy
Specifications:
- Inlet Connector 16 Amp - 125 Amp, Single Phase or Three Phase
- Diameter Range: 5.5 mm-7 mm
- Operating Voltage: 400 V
- Part no. 1245
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 1236 | 1237 | 1238 | 5 | 714 | |||
| 4 | 1239 | 1240 | 1241 | 1242 | 5 | 744 | |||
| 5 | 1243 | 1244 | 1245 | 5 | 785 |
| Current | Poles | a | b | c | d | e | f | g | |
| 63A | 3 | 257 | 112.5 | 85 | 77.4 | 34 | 108 | 92 | |
| 4 | 257 | 112.5 | 85 | 77.4 | 34 | 108 | 92 | ||
| 5 | 257 | 112.5 | 85 | 77.4 | 34 | 108 | 92 | ||
| Conductor cross-sectional area (mm²) Min To Max 10-16 | |||||||||

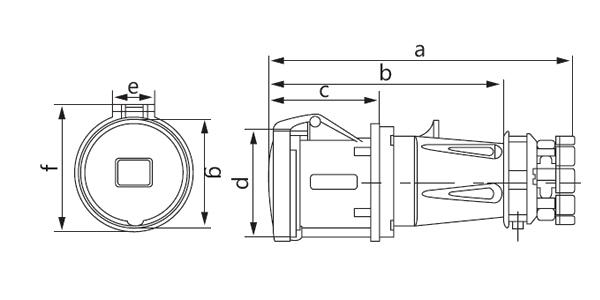

Product Dimension:

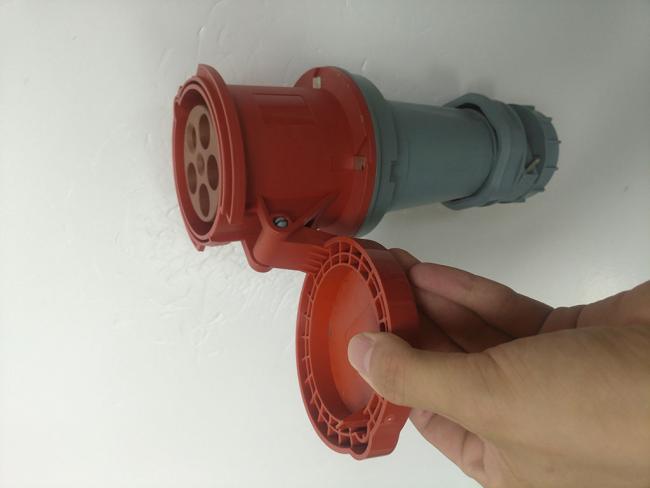

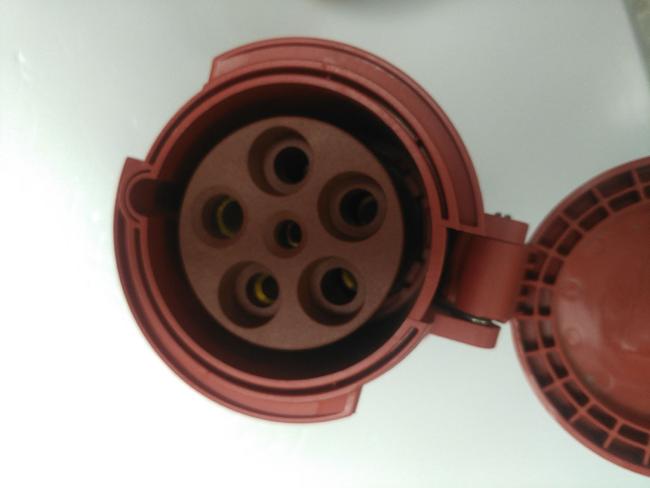

Picture:
