63 Amps Ip67 Industrial Sockets And Switches Thermoplastic Enclosure
Price:
Negotiable
MOQ:
500pcs
Delivery Time:
15 days
Brand:
HYPER
Product Description
5P 63Amps IP67 Waterproof SoftCONTACT switched mechanical DUO-interlock part 3rd Generation Industrial Socket no. 5113
Description:
Socket outlet with builtin switch-disconnectors 16 – 63A. Enclosure in thermoplastic (PBT).
The plug is connected with a horisonal movement. (The outlet is in the front of the product)
16 – 32A products have knock-outs cable entries. 22mm knock-out upwards and metric threaded M25 downwards. The 63A products have two 32mm knock-outs (one up and one down)
Part no. 5113
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 5911 | 1 | 2340 | ||||||
| 4 | 5109 | 5110 | 5111 | 1 | 2366 | |||||
| 5 | 5112 | 5113 | 5759 | 1 | 2585 |
| Current | Poles | a | b | c | d | e | f | g | h | M | m* |
| 63A | 3 | 264 | 163 | 196 | 240 | 140 | 8.1 | 8 | 300 | 40 | 25*32 |
| 4 | 264 | 163 | 196 | 240 | 140 | 8.1 | 8 | 300 | 40 | 25*32 | |
| 5 | 264 | 163 | 196 | 240 | 140 | 8.1 | 8 | 300 | 40 | 25*32 | |
| Conductor cross-sectional area (mm²) Min To Max 10-16 | |||||||||||

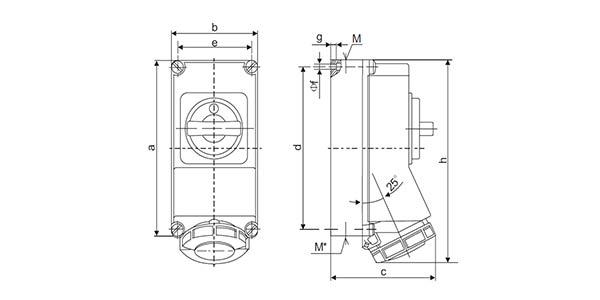

Product Dimension:
