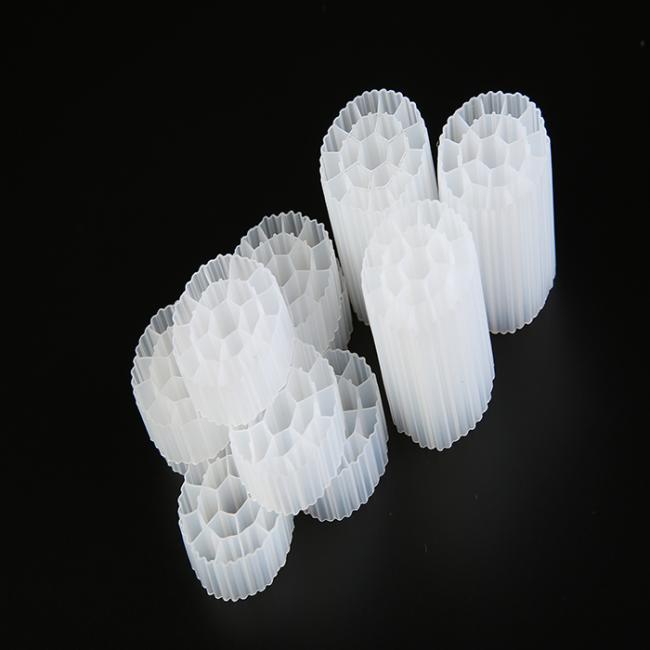

35mm X 18mm Size Virgin HDPE Material MBBR Bio Media PE07 For Aquariums

35mm X 18mm Size Virgin HDPE Material MBBR Bio Media PE07 For Aquariums

Small Boss MBBR Filter Media Advantage

• Rapid carrier bio film formation mechanism
• Super decarburization, ammonia nitrogen removal capacity
• Excellent resistance to shock load performance
• Flexible way of engineering application
• Simple operation and maintenance
• Long service life-100% virgin HDPE material.
• Deoxidation and phosphorus removal effect is good

Small Boss MBBR Filter Media Package:

0.1m3/woven bag; 1m3/woven bag;1m3/carton .

20ft container could load 30m3. 40HC container load 70m3

MBBR Technology


Technical Details
The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank. It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactor volume and are kept within the reactors by a sieve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement. A schematic of the principle in an implementation of the WOCK OLIVER MBBR technology is shown below

Small Boss MBBR Filter Media Advantage

Rapid carrier bio film formation mechanism

Super decarburization, ammonia nitrogen removal capacity

Excellent resistance to shock load performance

Flexible way of engineering application

Simple operation and maintenance

Long service life-100% virgin HDPE material.

Small Boss MBBR Filter Media ITEM

Item	PE01	PE02	PE03	PE04	PE05	PE06	PE07	PE08	PE09	PE64
pictures
size	12*9mm	11*7mm	10*7mm	16*10mm	25*10mm	25*10mm	35*18mm	5*10mm	15*15mm	25*4mm
Density (g/cm3)	0.94-0.97	0.94-0.97	0.94-0.97	0.94-0.97	0.94-0.97	0.94-0.97	0.94-0.97	1.02-1.05	0.94-0.97	0.94-0.97
Surface Area (m2/m3)	＞800	＞900	＞1000	＞800	＞500	＞500	＞350	＞3500	＞900	＞1200

MBBR Technology and Biofilm Carries
MBBR technology is based on the biofilm principle with an active biofilm growing on small specially designed plastic carriers that are kept suspended in the reactor. The technology utilizes the advantages of both activated sludge and other biofilm systems (e.g. biofilters, biorotors etc.) without being restrained by their disadvantages.
The carriers are designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the carriers are suspended in water.
Solutions based on MBBR technology is mainly used in the following applications:

+ For new plants, especially those requiring a small footprint and easy operation, for BOD/COD and nitrogen removal

+ As a high loading system in front of existing biological treatment - roughing reactor

+ To increase the amount of nitrifying bacteria in existing activated sludge system using the WOCK OLIVER carrier in a hybrid plant to meet ammonia limits

+ To implement post-treatment to existing plants for process improvements
