Black Color K3 MBBR Filter Carrier For Industrial Water Treatment 25*10mm

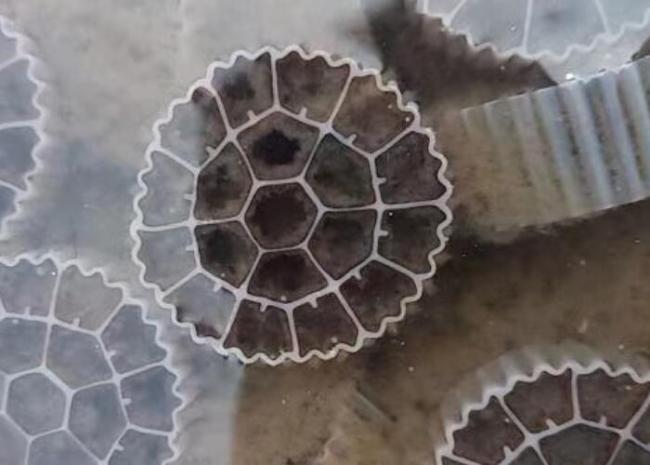

Small boss MBBR media ( Moving Bed Biofilm Reactor )
The Moving Bed Biofilm Reactor or MBBR process is the biofilm carrier elements that are made from polyethylene that provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture to grow and thrive. The biofilm also provides a more stable "home" for the bacteria to grow, so there is less space required compared to other biological systems and far less controls. MBBR can be designed for new facilities to remove BOD/COD from waste water streams or for nitrogen removal.
Excellent Resistance to Shock LoadPerformance.
Efficient processing capacity, its ability to remove organic matter 2-5 times higher than that of other traditional methods, high concentrations of biomass and diversity of biological fungus, strong resistance to impact load capacity.
Question:
After adding MBBR bio-filler, do I still need to add bio-mud?
Answer: Depending on the situation, if in the anoxic and anaerobic stages, biological mud is unavoidable and must be added. However, in the aerobic tank, if the temperature is moderate, the nitrification effect is good, and it can be omitted. If the number of bacteria is insufficient, an appropriate amount of bio-mud can be added to promote the film-hanging rate.
| odel | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥20 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥20 | >1.038,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥20 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥20 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥20 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥20 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥20 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥20 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥20 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥20 | >140,000 |
