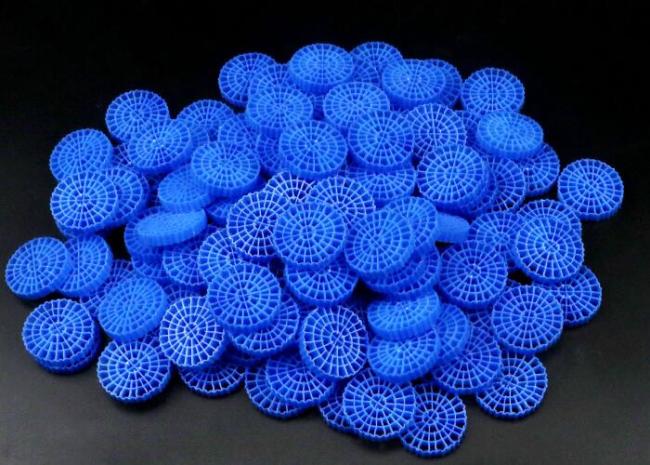

Aquarium pond fish blue color MBBR floating carrier large surface aera >1200M2/M3 SBR technology 25*4mm media
Small boss company has focused on MBBR Media over 15 years,we have developed more than 10 moulds can for your choices.
Small boss MBBR media Technical Details:
The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank. It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactor volume and are kept within the reactors by a sieve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement.
Small Boss MBBR Filter Media Application:
- The Sewage plant upgrade project , improve the standard and quantity
- New sewage treatment project of MBBR and Biological Aerated Filter process
- Biochemical treatment of reclaimed water
- River regulation denitrification and phosphorus removal
- Aquaculture in addition to ammonia nitrogen, water purification
- Biological filter media is used for biological deodorization tower

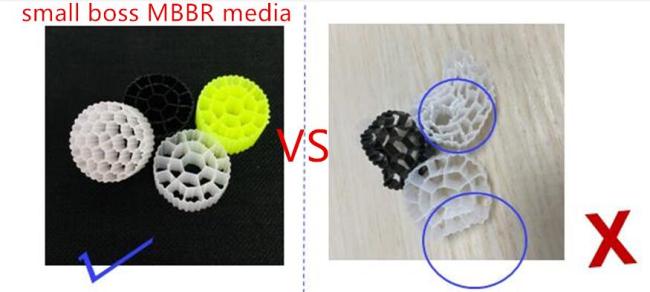

Why choose small boss MBBR media:
MBBR media form
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >930,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE64 | Φ25×4 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >210,000 |
