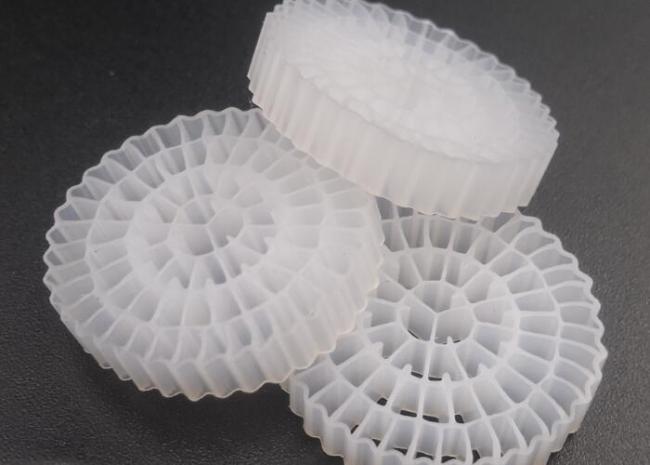

K3 Kaldnes Mbbr Floating Balls BIO Filter Media Hdpe 25*4mm White Color
K3 kaldnes mbbr floating balls hdpe 25*4mm white color media hot for shrimp farming save water resource factory price
The Moving Bed Bioreactor (MBBR) systems are based on the principal of increasing the surface area for enhanced biological treatment without increasing the plant footprint. The treatment reactors are filled with specially engineered media carriers to provide a larger surface area for development of bacterial bio film.Our specially designed model ensures higher effective area than our other competitors.
Process Principal:

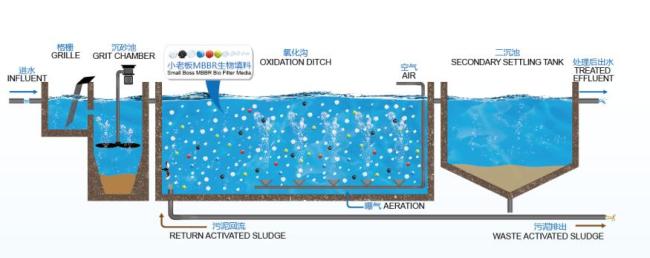

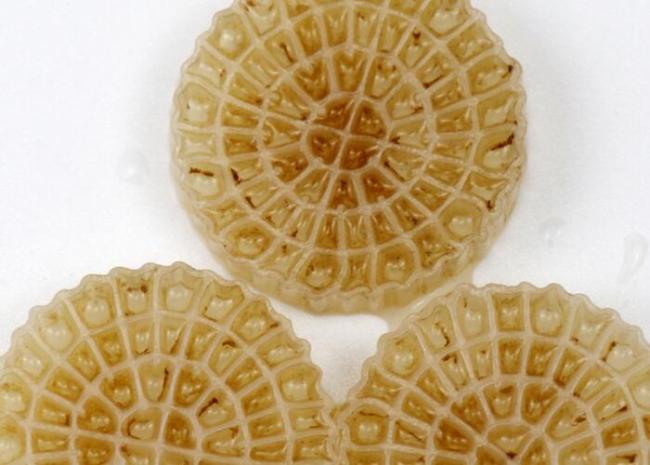

The waste water go through the suspending media of MBBR reactor, form the biological membrane on the surface of the media gradually, with the action of the microbial on the biological membrane, the waste water is purified. The media can move freely in the reactor with the mixing of the water; For the aerobic reactor, the aeration will make the media move; For the anaerobic reactor, mechanic mixing will make the media move. Our MBBR media is new-developed media for the MBBR process, has better treatment effect compare to traditional media.
Ideal Applications:
1) Sewage treatment
2) Aquaculture farms
3) Koi Filter Media
4)RAS
5)Dairy Industry
6)Domestic Sewage
7)Printing and Dyeing Wasterwater

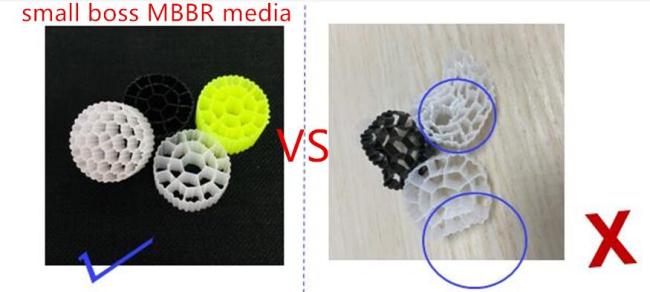

Small boss MBBR media good quality:
Specifications:
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥20 | >630,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥20 | >830,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥20 | >850,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥20 | >260,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥20 | >97,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥20 | >97,000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥20 | >33,000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥20 | >2,000,000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥20 | >230,000 |
| PE64 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥20 | >210,000 |
