Honeycomb Inclined Settling Pipe / Tube Settler Clarifier Submerged Aerated Fixed Films
Price:
discuss personally
MOQ:
5cbm
Delivery Time:
as your requirement qty
Brand:
Small Boss
Product Description

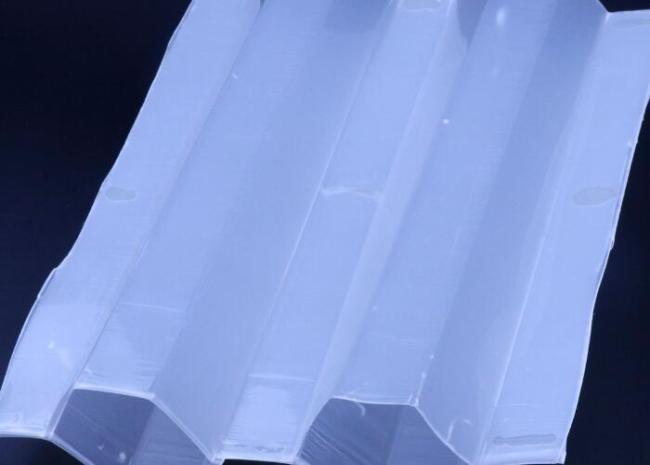

Honeycomb inclined settling pipe/PVC PP hexagonal tube settler saff Submerged Aerated Fixed Films
Tube settlers, also called lamella clarifiers, widely used in all different clarifiers to remove sand for water treatment.
The settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area. This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier, reducing settling times.

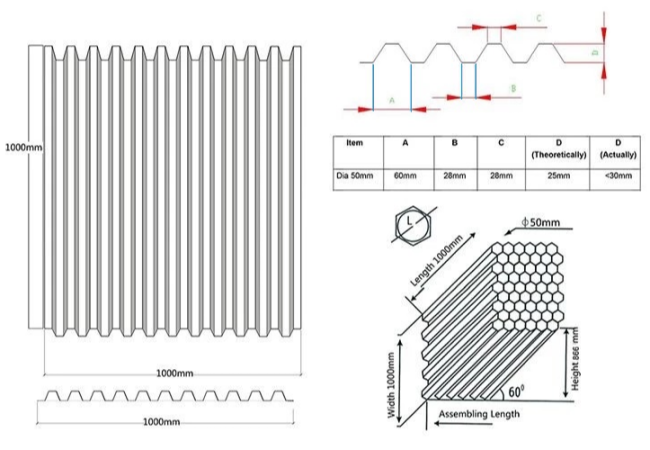

Tube settlers specification as following:
| Item | Tube settler media | ||||||||
| Material | PP | PVC | FRP | ||||||
| Diameter(mm) | 35 | 50 | 80 | 35 | 50 | 80 | 35 | 50 | 80 |
| Sheet quantity(pcs/m2) | 40 | 30 | 20 | 40 | 30 | 20 | 40 | 30 | 20 |
| Thickness(mm) | 0.45 | 0.5 | 0.7 | 0.45 | 0.5 | 0.7 | 0.5 | 0.5 | 0.7 |
| Weight(kg/m2) | 21 | 16 | 16 | 31 | 23 | 23 | 41 | 31 | 31 |
| One sheet size(mm) | 1000*1000 | 1000*1000 | 1000*1000 | ||||||
| One block size(mm) | 1000*1000*866 | 1000*1000*866 | 1000*1000*866 | ||||||
| Application | Water supply, sewage water | sewage water | Water supply, sewage water | ||||||
| Color | white | Blue | Can be customized | ||||||
| Assemble method | Electrical heating | Glue | Glue | ||||||
| installation angle | 60° | 60° | 60° | ||||||
| temperature | 5~50℃ | 5~50℃ | 5~50℃ | ||||||
| Proportion g/cm3 | 0.92 | 1.35~1.46 | 1.8 | ||||||
| Product feature | By pcs | By pcs | By pcs | ||||||
