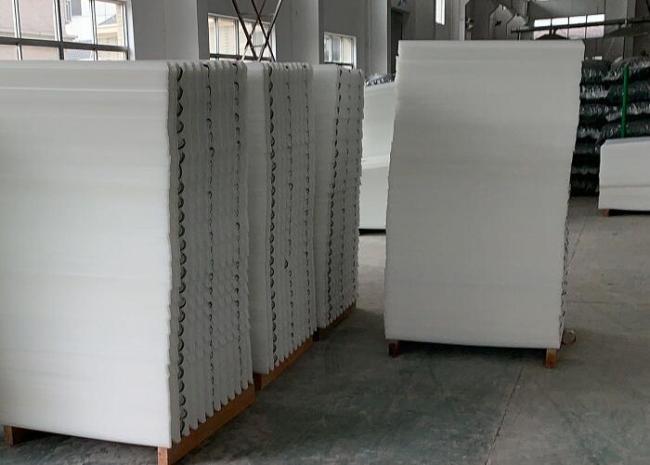

white color Inclined plate tube settler,pipe settler,tube settler clarifier saff media water treatment
Inclined plate tube settler,pipe settler,tube settler clarifier
Tube settler systems are an inexpensive solution for drinking water and wastewater plants to increase treatment capacity, reduce new installation footprints, improve effluent water quality, and decrease operating costs. Our tube settlers consist of a series of sloped, tubular channels and structural wave sheets that reduce settling distance and combine to form an increased effective settling area. Smaller, typically unsettleable floc particles must only fall a short vertical distance to encounter the tube surface where they accumulate and coalesce, forming larger, denser particles capable of settling to the basin floor. Huaer’s tube settlers are designed to accompany and complement sludge collector systems, allowing customers to purchase full clarification solutions from a consistent, single-source supplier.
Why choose tube settler for water treatment
Tube settlers offer an inexpensive method of upgrading existing water treatment plant clarifiers and sedimentation basins to improve performance.
They can also reduce the tankage/footprint required in new installations or improve the performance of existing settling basins by reducing the solids loading on downstream filters.
Made of lightweight PVC, tube settlers can be easily supported with minimal structures that often incorporate the effluent trough supports.
They are available in a variety of module sizes and tube lengths to fit any tank geometry, with custom design and engineering offered by the manufacturer.
Technical data:
| Item | Tube settler media | ||||||||
| Material | PP | PVC | FRP | ||||||
| Diameter(mm) | 35 | 50 | 80 | 35 | 50 | 80 | 35 | 50 | 80 |
| Sheet quantity(pcs/m2) | 40 | 30 | 20 | 40 | 30 | 20 | 40 | 30 | 20 |
| Thickness(mm) | 0.45 | 0.5 | 0.7 | 0.45 | 0.5 | 0.7 | 0.5 | 0.5 | 0.7 |
| Weight(kg/m2) | 21 | 16 | 16 | 31 | 23 | 23 | 41 | 31 | 31 |
| One sheet size(mm) | 1000*1000 | 1000*1000 | 1000*1000 | ||||||
| One block size(mm) | 1000*1000*866 | 1000*1000*866 | 1000*1000*866 | ||||||
| Application | Water supply, sewage water | sewage water | Water supply, sewage water | ||||||
| Color | white | Blue | Can be customized | ||||||
| Assemble method | Electrical heating | Glue | Glue | ||||||
| installation angle | 60° | 60° | 60° | ||||||
| temperature | 5~50℃ | 5~50℃ | 5~50℃ | ||||||
| Proportion g/cm3 | 0.92 | 1.35~1.46 | 1.8 | ||||||
| Product feature | By pcs | By pcs | By pcs | ||||||
