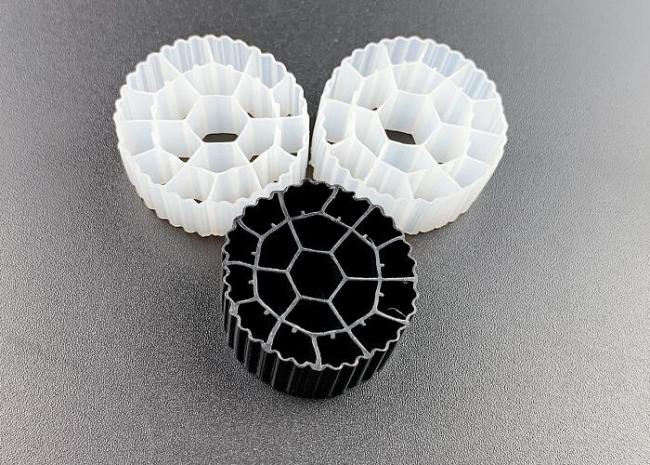

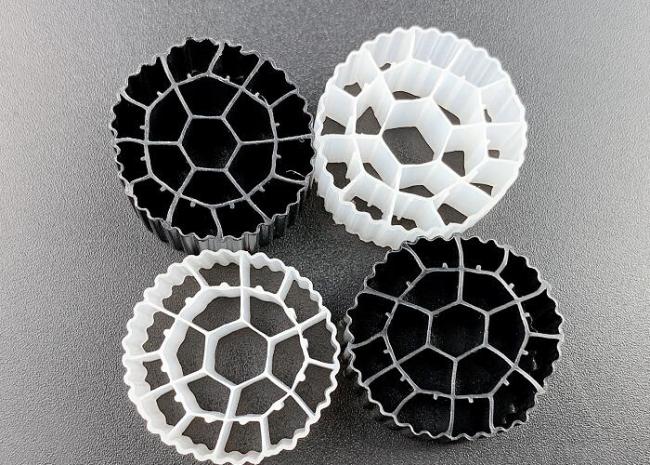

Moving Bed Biofilm Reactor Virgin Hdpe Material MBBR Biocell Media
moving bed biofilm reactor new virgin hdpe material long service life MBBR biocell media
1. General introduction
The suspension biological packing is called BIOCELL. It modified polymeric materials with the promoted additions of bio-enzyme, it improves the enzymatic catalysis, so it possess excellences of larger specific surface, being easy to multiply biofilm, difficult falling off, high denitrification, good hydrophile, high biological activity and so on.
2. Using scope
The suspension biological packing widely uses in the sanitary sewage and industrial waste processing, is suitable especially for the excess load active sludge law transformation and the area limited newly built sewage factory.
Specification:
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE05 | Φ25×10 | >600 | 5-15 | 400-1200 | <65 | ≥15 | >97,000 |
|
Technical Specifications |
Small Boss MBBR Advantages |
|
·Type: PE05 ·Spec.: 25 X 10 mm ·Density: 0.94-0.97g/cm³ ·Virgin HDPE material ·Dosing ratio: 30% ·Packing number: >118000pcs/m³ ·Active surface area more than 500㎡/m³ ·Life span: >15years ·Nitrfication efficiency: 500g NH4-N/m³.d
|
·High hydrophilicity and excellent adhesion to surfaces ·High bio-activity and bio-film short time ·High impact resistance and stable operation ·Less residual sludge ·High volume load, high filling rate and less land occupation ·Cost-effective, easy to operate and maintain ·Rebuild-free, easy to upgrade or expand ·Long service life more than 15 years |
