900m2/M3 Bio Media Biotube MBBR Water Treatment White HDPE
Cheap price 11*7mm bio media white biotube MBBR water treatment
Biotube 900m²/m³ - MBBR / IFAS biological filter media

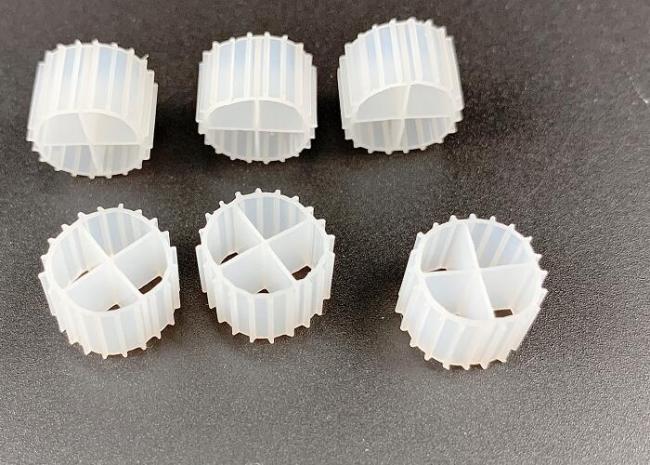

Biotube is a tube shaped biological filter media with internal and external fins and surface area of 1000m²/m³.
It is designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the media are suspended in water. It is a durable, rugged and highly efficient media for moving bed biological reactors (MBBR) and integrated fixed film activated sludge (IFAS) systems.
Its innovative design creates a high percentage of protected surface area for micro-organisms to adhere. In turn, this increases the overall biomass concentration and can reduce the tank volume required for wastewater treatment. Large openings allow for the wastewater to freely pass through the media which helps maintain a healthy and thin biofilm.
Biotubeis feasible for both industrial and municipal wastewater and is used for organic removal, nitrification and denitrification.
| Model | Size(mm) | Specific Surface Area(m2/m3) | Bio-film formation Duration (days) |
Nitrification Efficiency | Preferential Temperature (ºC) | Services life(years) | Number of unites per m3 |
| PE01 | Φ12×9 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >660,000 |
| PE02 | Φ11×7 | >900 | 5-15 | 400-1200 | <65 | ≥10 | >930,000 |
| PE03 | Φ10×7 | >1000 | 5-15 | 400-1200 | <65 | ≥10 | >100,000 |
| PE04 | Φ16×10 | >800 | 5-15 | 400-1200 | <65 | ≥10 | >3340,000 |
| PE05 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >135,000 |
| PE06 | Φ25×12 | >500 | 5-15 | 400-1200 | <65 | ≥10 | >97000 |
| PE07 | Φ35×18 | >350 | 5-15 | 300-800 | <65 | ≥10 | >33000 |
| PE08 | Φ5×10 | >3500 | 5-15 | 500-1400 | <65 | ≥10 | >2000000 |
| PE09 | Φ15×15 | >900 | 5-15 | 500-1400 | <65 | ≥10 | >230,000 |
| PE10 | Φ25×8 | >1200 | 5-15 | 500-1400 | <65 | ≥10 | >140,000 |
(Using Scope)
The sewage plant upgrade project , improve the standard and quantity
New sewage treatment project of MBBR and biological aerated filter process
Biochemical treatment of reclaimed water
River regulation denitrification and phosphorus removal
Aquaculture in addition to ammonia nitrogen, water purification
Biological filter media is used for biological deodorization tower
(Application industry: )
Municipal, Power, Pharmaceutical, Chemical, Electroplating, Metallurgy, Machinery, Papermaking, Printing and Dyeing, Medicine, Food processing, Aquaculture, with the continuous improvement and the deepening use of our products, Small Boss filter media will be used more and more widely.
Using Advantages
Rapid carrier biofilm formation mechanism
Specific trace element vector into and special surface treatment process, the microorganisms in water on the carrier attached rapidly and rapid propagation of growth, biofilm formation in different water conditions, and biofilm schedule differences, generally, the hang film need 3-15 days.
Super decarburization, ammonia nitrogen removal capacity
Carrier provide a safe and comfortable environment for microbial breeding, Biological variety, because of no sludge age limit, nitrifying bacteria have also been large-scale breeding, microbial population huge is dissolved organic compounds and ammonia decomposition.
