10m Non-lockable Pneumatic Telescopic Mast 70kg Payloads
2m closed height
NR-2.3-10-30N-7S-51-160

10m Pneumatic Telescopic Mast-70kg payloads-2m closed height
Item #: NR-2.0-10-70N-8S-82-229
1> Extended Height: 10m
2> Retracted Height: 2.0m
3> Payloads: 70kg maximum @ 0.2Mpa/29 PSI working air pressure
4> Type: Non-lockable mast (automatic extension/ retraction)
5> Number of sections: 8
6> Section dia. * thickness: 82~229mm
7> Materials: aluminum alloy 6063T5
8> Mast weight: 132 kg approx.
9> Working air preesure: 0.2Mpa/29 PSI as maximum recommend
10> Working temperature: -25~55 Celcius Degrees
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control panel, 1x side mounting bracket

Charging accessories: Ground mounting quadpod, Guying wires kits 2x4,
Electric air compressor DC or AC
remote control kit (DC12V)

leading time: 20 days
data update on 20241022

10m Non-Lockable Pneumatic Telescopic Mast-70kg Payload
NR-2.0-10-70N-8S-82-229
Extended Height	:	10	m	32.8	ft
Retracted Height	:	2	m	6.6	ft
Vertical Payload	:	70	kg	154	lb
Working air pressure	:	0.2	Mpa	29	PSI
Collar Type	:	Non-Locking (Automatic Extension, Automatic Retraction)
Inside Electric Wires	:
Number of sections	:	8
Top section diameter	:	82	mm	3.2	in
Basement section diameter	:	229	mm	9.0	in
Mast Weight	:	132	kg	290	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5

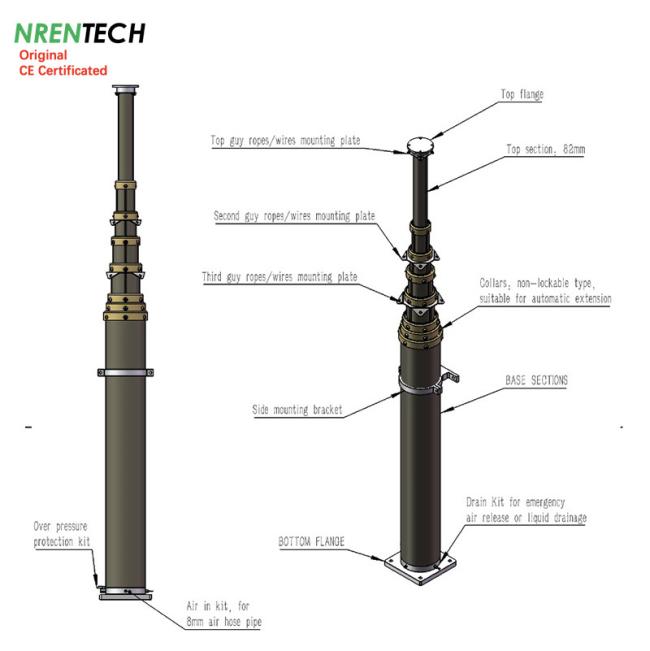

Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
		Side Mounting Bracket
Optional Accessories	:	Electric air compressor			DC12V, DC24V, AC220V/50hz
		Guying Rope Kits			3x4 (3 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 10m)
		Side Mounting Bracket			Aluminum alloy 6061 Materials
		Ground mounting Quadpod			Stainless Materials
		Rotation Basement
		Remote control kit
data update on 20241022
