30m lockable pneumatic telescopic mast 30kg payloads for mobile broadcasting antenna NR-4.4-30-30L-13S-51-316
30m Pneumatic Telescopic Mast-30kg Payloads-4.4m retracted height NR-4.4-30-30L-13S-51-316

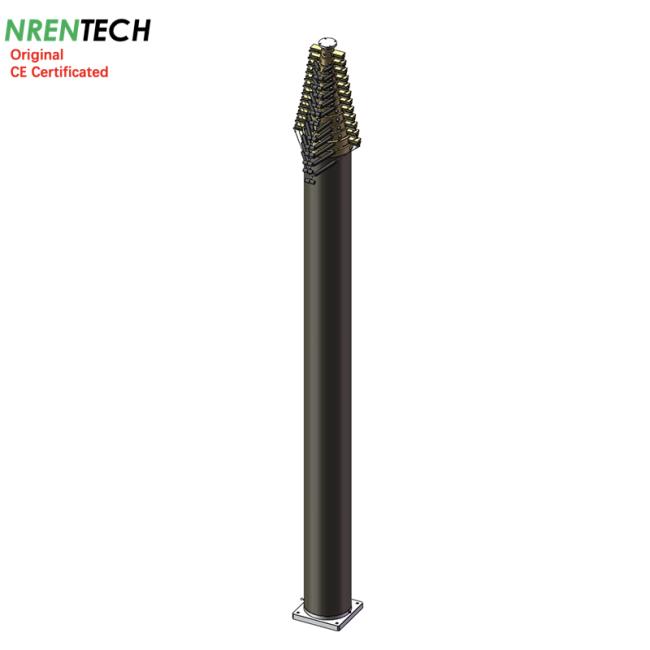

30m Pneumatic Telescopic Mast 30kg payloads
Item #: NR-4.4-30-30L-13S-51-316
1> Extended Height: 30m
2> Retracted Height: 4.4m
3> Top Payloads: 30kg
4> Working air pressure: 0.2Mpa/29PSI
5> Working temperature: -15~85 ℃

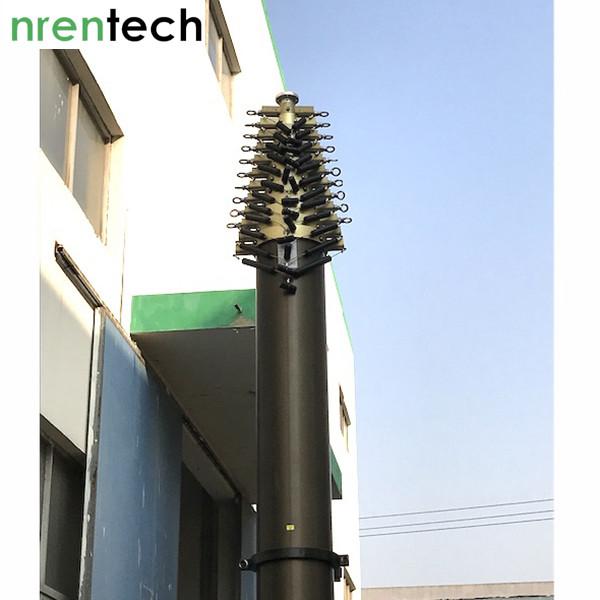

6> Collar style: Locking Collar
7> Number of sections: 13 sections
8> Section dia. 51mm~316mm
9> Materials: aluminum alloy 6063T5 materials
10> Default Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe
11> mast weight: 465kg approx.
Charging accessories: electric air compressor (wireless remote control available), guying ropes kits for 120km/h), ground mounting brackets, vehicle side mounting brackets, air controller
| 30m Lockable Pneumatic Telescopic Mast-30kg Payload | |||||||||||||
| NR-4.4-30-30L-13S-51-316 | |||||||||||||
|
|||||||||||||
| Extended Height | : | 30 | m | 98.4 | ft | ||||||||
| Retracted Height | : | 4.4 | m | 14.4 | ft | ||||||||
| Vertical Payload | : | 30 | kg | 66 | lb | ||||||||
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | ||||||||
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | |||||||||||
| Inside Electric Wires | : | ||||||||||||
| Number of sections | : | 13 | |||||||||||
| Top section diameter | : | 51 | mm | 2.0 | in | ||||||||
| Basement section diameter | : | 316 | mm | 12.4 | in | ||||||||
| Mast Weight | : | 480 | kg | 1056 | lb | ||||||||
| Working temperature | : | -25~65 Celsius Degree | |||||||||||
| Materials | : | Aluminum alloy 6063T5 | |||||||||||
| Default accessories | : | top flange | |||||||||||
| bottom flange | |||||||||||||
| air hose pipe | |||||||||||||
| air control manual | |||||||||||||
| Retraction operation tool | |||||||||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz | ||||||||||
| Guying Rope Kits | 5x4 (5 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 30m) | ||||||||||||
| Side Mounting Bracket | Steel Material | ||||||||||||
| Ground mounting Quadpod | Stainless Materials | ||||||||||||
| Rotation Basement | Manual Rotation | ||||||||||||
| Remote control kit | 12VDC | ||||||||||||
| data update on 20230702 | |||||||||||||
