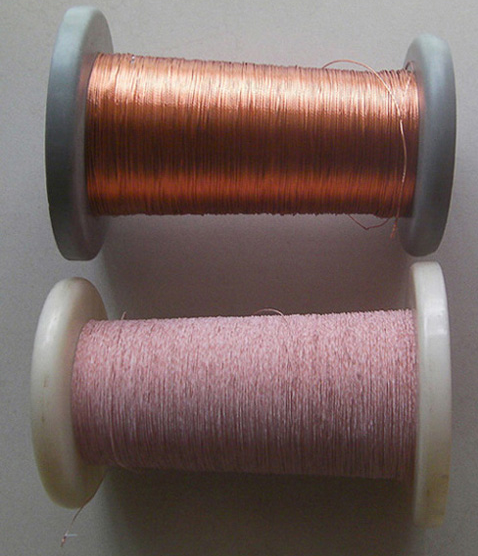

AWG 44 - 24 Gauge Ultra Fine Enameled Wire High Frequency Silk Covered Litz Wire
AWG 44 - 24GAUGE ULTRA FINE ENAMELED WIRE HIGH FREQUENCY SILK COVERED LITZ WIRE
Litz wire is a type of cable used in electronics to carry alternating current which is designed to withstand high frequency environments. It is widely suitable for severe temperature duty continuously as well as high frequency applications.
BENEFITS
-
Increased efficiency
-
Mitigation of skin and proximity effect
-
Minimize the power losses due to skin effect
-
Superior Q characteristics at high frequencies.
-
Reduced footprint of final product
-
Substantial weight reduction
-
Avoidance of "hot spots"
-
0.020-0.5mm
APPLICATIONS
Coils in higher frequency ranges
|
Conductor dia.(mm) |
Typical overall dia.(mm) |
Max.overall diameter(mm) |
Max. conductor resistance(/km) |
Unit Weight(kg/km) |
|
7/0.10 |
0.524 |
0.58 |
346.9 |
0.679 |
|
7/0.11 |
0.554 |
0.61 |
285.2 |
0.797 |
|
7/0.12 |
0.59 |
0.65 |
238.4 |
0.931 |
|
7/0.13 |
0.62 |
0.68 |
202.4 |
1.069 |
|
7/0.14 |
0.65 |
0.71 |
173.8 |
1.217 |
|
7/0.15 |
0.68 |
0.74 |
151.1 |
1.375 |
|
7/0.16 |
0.716 |
0.77 |
132.4 |
1.55 |
|
7/0.17 |
0.746 |
0.8 |
117 |
1.728 |
|
7/0.18 |
0.776 |
0.83 |
104.2 |
1.917 |
|
7/0.19 |
0.806 |
0.86 |
93.34 |
2.115 |
|
7/0.20 |
0.836 |
0.89 |
84.1 |
2.323 |
|
7/0.21 |
0.866 |
0.92 |
76.18 |
2.541 |
|
7/0.22 |
0.896 |
0.95 |
69.96 |
2.769 |
|
7/0.23 |
0.932 |
0.99 |
63.91 |
3.017 |
|
7/0.24 |
0.962 |
1.02 |
58.61 |
3.265 |
|
7/0.25 |
0.992 |
1.05 |
53.94 |
3.523 |
|
7/0.26 |
1.022 |
1.08 |
49.81 |
3.792 |
|
7/0.27 |
1.052 |
1.11 |
46.13 |
4.07 |
|
7/0.28 |
1.082 |
1.14 |
42.85 |
4.358 |
|
7/0.29 |
1.112 |
1.17 |
39.91 |
4.656 |
|
7/0.30 |
1.148 |
1.2 |
37.01 |
4.976 |
