0.012 - 0.4mm Super Fine Enameled Magnet Wire Blue / Green / Red Copper Winding Wire

Price Negotiable

Price: Negotiation

MOQ: Different types with differet MOQ

Delivery Time: 2-15 workding days

Brand: Rvyuan

Product Description

0.012 - 0.4MM SUPER FINE ENAMELED MAGNET WIRE BLUE/GREEN/RED COPPER WINDING WIRE

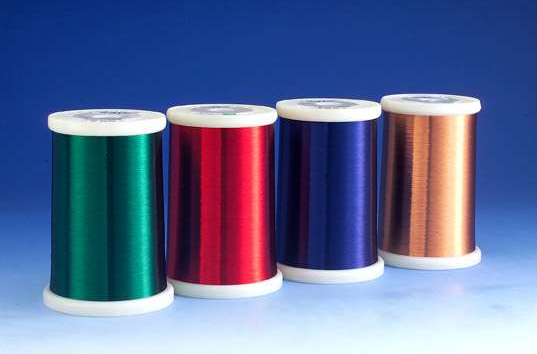

Comparing the color of copper itself, red, blue and green enamelled magnetic copper wire can help to distinguish clearly when there are different wires should be used at the same time.That not only greatly reduces potential operating damage but makes the wire more beautiul!.

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance

	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50	----	5	10	142.64	157.65
0.013	----	0.015	0.017	70	----	5	10	118.41	133.98
0.014	----	0.016	0.018	70	----	5	10	102.64	120.45
0.015	----	0.017	0.02	80	----	5	10	89.83	104.41
0.016	----	0.018	0.021	90	----	5	8	74.67	97.56
0.017	----	0.019	0.022	90	----	5	8	66.6	85.75
0.018	----	0.02	0.023	100	----	5	8	59.77	75.95
0.019	----	0.021	0.024	100	----	5	8	53.95	67.75
0.05	±0.002	0.007	0.062	400	1200	12	5	7981	9528
0.055	±0.002	0.007	0.068	400	1200	12	5	6642	7815
0.06	±0.002	0.007	0.073	500	1200	14	5	5614	6526
0.065	±0.002	0.007	0.078	500	1200	14	5	4807	5531
0.07	±0.002	0.007	0.083	500	1200	15	5	4163	4747
0.075	±0.002	0.007	0.088	550	1200	15	5	3640	4119
0.08	±0.002	0.008	0.094	550	1200	16	5	3209	3608
0.085	±0.002	0.008	0.099	550	1200	16	5	2851	3187
0.09	±0.002	0.01	0.106	650	1200	16	5	2550	2835
0.095	±0.002	0.01	0.111	650	1200	17	5	2294	2538
0.1	±0.002	0.011	0.118	650	1200	17	5	2074	2286
0.11	±0.002	0.011	0.129	----	1300	17	5	1720	1882
0.12	±0.002	0.011	0.139	----	1500	17	5	1450	1577
0.13	±0.002	0.011	0.149	----	1500	18	5	1239	1340
0.14	±0.002	0.011	0.159	----	1600	19	5	1070	1153
0.15	±0.002	0.011	0.169	----	1700	20	5	934.1	1002
0.16	±0.002	0.012	0.18	----	1700	21	5	822.3	879.4
0.17	±0.003	0.013	0.192	----	2000	22	5	721.1	787.1
0.18	±0.003	0.014	0.204	----	2000	22	5	644.4	700.7
0.19	±0.003	0.014	0.214	----	2000	23	5	579.4	627.8
0.2	±0.003	0.014	0.224	----	2000	23	5	523.7	565.7
0.21	±0.003	0.014	0.234	----	2000	23	5	475.7	512.3
0.22	±0.003	0.014	0.245	----	2200	23	5	434	466.2
0.23	±0.003	0.016	0.257	----	2200	24	5	397.5	426
0.24	±0.003	0.016	0.267	----	2200	24	5	365.5	390.8
0.25	±0.003	0.016	0.277	----	2300	24	5	337.1	359.8
0.26	±0.004	0.018	0.287	----	2300	25	5	309.6	335
0.27	±0.004	0.018	0.297	----	2300	25	5	287.4	310.3
0.28	±0.004	0.022	0.313	----	2300	25	5	267.6	288.2
0.29	±0.004	0.022	0.323	----	2500	25	5	249.7	268.4
0.3	±0.004	0.022	0.334	----	2500	25	5	233.5	250.6
0.31	±0.004	0.022	0.344	----	2500	25	5	218.9	234.4
0.315	±0.004	0.022	0.349	----	2500	25	5	212.1	227
0.32	±0.004	0.023	0.355	----	2700	25	5	205.6	219.8
0.33	±0.004	0.023	0.365	----	2700	25	5	193.5	206.6
0.35	±0.004	0.023	0.385	----	2700	26	5	172.2	183.4
0.355	±0.004	0.023	0.39	----	2700	26	5	167.4	178.2
0.37	±0.004	0.024	0.406	----	2900	26	5	154.3	163.9
0.38	±0.004	0.024	0.416	----	2900	26	5	146.4	155.3
0.4	±0.004	0.025	0.437	----	2900	27	5	132.2	140
