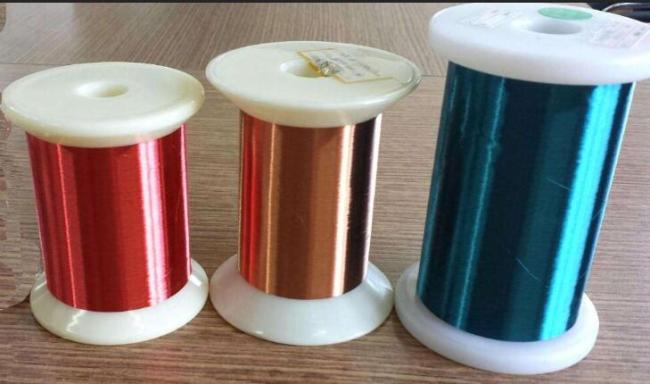

Super Fine Enameled Magnet Wire , 0.012 - 0.8mm Enameled Wire For Voice Coils

Price Negotiable

Price: Negotiation

MOQ: Different types with differet MOQ

Delivery Time: 2-15 workding days

Brand: Rvyuan

Product Description

SUPER FINE ENAMELED MAGNET WIRE 0.012-0.8MM ENAMELED WIRE FOR VOICE COILS

Selfbonding wire is an enamelled wire over coated with a bonding layer, which can make the wires bond together by heat or solvent after winding. This feature can make the coil as fixed,compact and self-suport one. The wire can make your components smaller and free from bobbins, tape, varnishing,etc. and bring higher production effective.

FEATURE AND BENEFITS

1. Temperature Rate: 155/180/220℃

2. Two types of self-bondnig maetrials and ca be processed with either alcohol,heat or electric methods. The alcohol must be revoved from the coil to ensure taht long term insulation degradatoin does not occur.

The wire has unifor lubrication and good winding property

3. We also provider solderable wires to save process time for customers

4. Size range:0.012-0.8mm

SPECIFICATION

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance

	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.012	----	0.013	0.015	50	----	5	10	142.64	157.65
0.013	----	0.015	0.017	70	----	5	10	118.41	133.98
0.014	----	0.016	0.018	70	----	5	10	102.64	120.45
0.015	----	0.017	0.02	80	----	5	10	89.83	104.41
0.016	----	0.018	0.021	90	----	5	8	74.67	97.56
0.017	----	0.019	0.022	90	----	5	8	66.6	85.75
0.018	----	0.02	0.023	100	----	5	8	59.77	75.95
0.019	----	0.021	0.024	100	----	5	8	53.95	67.75
0.02	0.001	0.022	0.024	100	----	8	8	51.83	60.81
0.05	±0.002	0.007	0.062	400	1200	12	5	7981	9528
0.055	±0.002	0.007	0.068	400	1200	12	5	6642	7815
0.06	±0.002	0.007	0.073	500	1200	14	5	5614	6526
0.065	±0.002	0.007	0.078	500	1200	14	5	4807	5531
0.07	±0.002	0.007	0.083	500	1200	15	5	4163	4747
0.075	±0.002	0.007	0.088	550	1200	15	5	3640	4119
0.08	±0.002	0.008	0.094	550	1200	16	5	3209	3608
0.085	±0.002	0.008	0.099	550	1200	16	5	2851	3187
0.09	±0.002	0.01	0.106	650	1200	16	5	2550	2835
0.095	±0.002	0.01	0.111	650	1200	17	5	2294	2538
0.1	±0.002	0.011	0.118	650	1200	17	5	2074	2286
0.11	±0.002	0.011	0.129	----	1300	17	5	1720	1882
0.12	±0.002	0.011	0.139	----	1500	17	5	1450	1577
0.13	±0.002	0.011	0.149	----	1500	18	5	1239	1340
0.14	±0.002	0.011	0.159	----	1600	19	5	1070	1153
0.15	±0.002	0.011	0.169	----	1700	20	5	934.1	1002
0.16	±0.002	0.012	0.18	----	1700	21	5	822.3	879.4
0.17	±0.003	0.013	0.192	----	2000	22	5	721.1	787.1
0.18	±0.003	0.014	0.204	----	2000	22	5	644.4	700.7
0.19	±0.003	0.014	0.214	----	2000	23	5	579.4	627.8
0.2	±0.003	0.014	0.224	----	2000	23	5	523.7	565.7
0.21	±0.003	0.014	0.234	----	2000	23	5	475.7	512.3
0.22	±0.003	0.014	0.245	----	2200	23	5	434	466.2
0.23	±0.003	0.016	0.257	----	2200	24	5	397.5	426
0.24	±0.003	0.016	0.267	----	2200	24	5	365.5	390.8
0.25	±0.003	0.016	0.277	----	2300	24	5	337.1	359.8
0.26	±0.004	0.018	0.287	----	2300	25	5	309.6	335
0.27	±0.004	0.018	0.297	----	2300	25	5	287.4	310.3
0.28	±0.004	0.022	0.313	----	2300	25	5	267.6	288.2
0.29	±0.004	0.022	0.323	----	2500	25	5	249.7	268.4
0.3	±0.004	0.022	0.334	----	2500	25	5	233.5	250.6
0.31	±0.004	0.022	0.344	----	2500	25	5	218.9	234.4
0.315	±0.004	0.022	0.349	----	2500	25	5	212.1	227
0.32	±0.004	0.023	0.355	----	2700	25	5	205.6	219.8
0.33	±0.004	0.023	0.365	----	2700	25	5	193.5	206.6
0.35	±0.004	0.023	0.385	----	2700	26	5	172.2	183.4
0.355	±0.004	0.023	0.39	----	2700	26	5	167.4	178.2
0.37	±0.004	0.024	0.406	----	2900	26	5	154.3	163.9
0.38	±0.004	0.024	0.416	----	2900	26	5	146.4	155.3
0.4	±0.004	0.025	0.437	----	2900	27	5	132.2	140
0.41	±0.004	0.025	0.447	----	2900	27	5	125.9	133.2
0.44	±0.004	0.025	0.477	----	2900	27	5	109.5	115.5
0.45	±0.004	0.025	0.487	----	2900	27	5	104.7	110.4
0.47	±0.004	0.026	0.508	----	3100	27	5	96.05	101.1
0.5	±0.004	0.026	0.539	----	3100	27	5	84.96	89.23
0.55	±0.004	0.027	0.59	----	3300	28	5	70.31	73.64
0.6	±0.005	0.027	0.64	----	3500	28	5	58.96	62.01
0.65	±0.005	0.027	0.69	----	3500	28	5	50.3	52.77
0.7	±0.005	0.029	0.742	----	3500	28	5	43.42	45.45
0.75	±0.005	0.03	0.794	----	3800	28	5	37.86	39.55
0.8	±0.005	0.032	0.846	----	3800	28	5	33.3	34.73
