0.012mm - 0.8mm Different Color Ultra Thin Enameled Copper Wire Winding Wire For Transformer
0.012 - 0.8MM DIFFERENT COLOR ULTRA THIN ENAMELED COPPER WIRE WINDING WIRE FOR TRANSFORMER

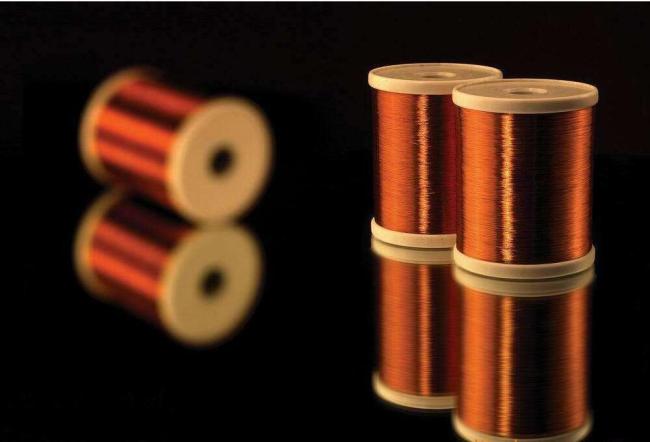

Enamelled Copper Wire (Magnet Wire) is an insulated copper (or aluminium) electrical conductor used in motors, transformers and other electromagnetic equipment. When wound into a coil and energized, magnet wire creates an electromagnetic field.Electrical to electrical transformation involves transformers, which are used to transfer power. Transformers are used for power generation by utility companies, for power voltage conversion, and in electrical controls in industrial and home uses.Our enamelled wire is produced environmentally compatibly and containes a minimum of pollutants only. Independent laboratories confirm with their corresponding RoHS certificates, that enamelled wire is compatible with the environment.
FEATURES AND BENEFITS
♦ Excellent resistance to abrasion and solvent,
♦ Excellent electricity performance
♦ Excellent heat shock, adherence and flexibility,
♦ High cut through
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
EXECUTIVE STANDARDS
IEC, JIS and NEMA.
HEAT SHOCK TEST
|
Nominal conductor diameter |
Pre-stretching % |
Diameter of mandrel (mm) |
Nominal conductor diameter |
Pre-stretching % |
Diameter of mandrel(mm) |
|
d(mm) |
d(mm) |
||||
|
d≤0.050 |
20 |
0.15 |
0.250＜d≤0.280 |
0 |
0.63 |
|
0.050＜d≤0.063 |
15 |
0.15 |
0.280＜d≤0.315 |
0 |
0.71 |
|
0.063＜d≤0.080 |
10 |
0.15 |
0.315＜d≤0.355 |
0 |
0.8 |
|
0.080＜d≤0.112 |
5 |
0.15 |
0.355＜d≤0.400 |
0 |
0.9 |
|
0.112＜d≤0.140 |
0 |
0.15 |
0.400＜d≤0.450 |
0 |
1 |
|
0.140＜d≤0.160 |
0 |
0.25 |
0.450＜d≤0.500 |
0 |
1.12 |
|
0.160＜d≤0.180 |
0 |
0.28 |
0.500＜d≤0.560 |
0 |
1.25 |
|
0.180＜d≤0.200 |
0 |
0.315 |
0.560＜d≤0.630 |
0 |
1.4 |
|
0.200＜d≤0.224 |
0 |
0.355 |
0.630＜d≤0.710 |
0 |
1.6 |
|
0.224＜d≤0.250 |
0 |
0.4 |
0.710＜d≤0.800 |
0 |
1.8 |
