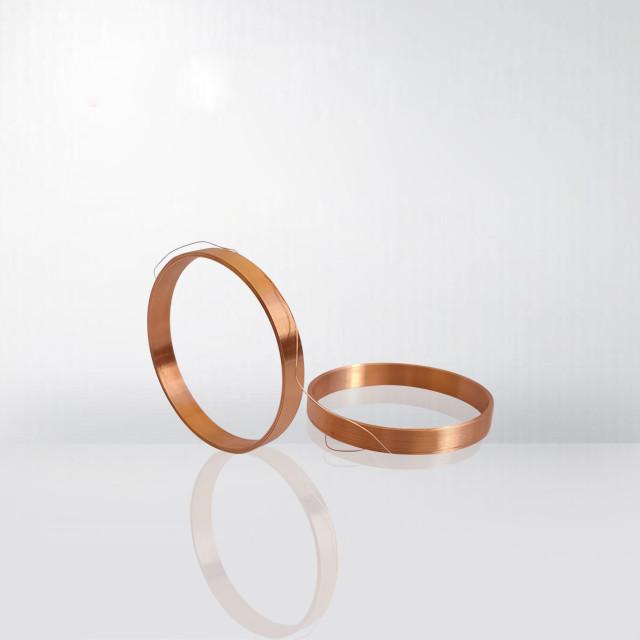

AWG 20 - 56 Ultra Thin Enameled Copper Wire High Cut Through Magnet Winding Wire For Industrial Electronics
AWG 20 - 56 ULTRA THIN ENAMELED COPPER WIRE HIGH CUT THROUGH MAGNET WINDING WIRE FOR INDUSTRIAL ELECTRONICS
Electrical wire carries an electric current or grounds an electrical device. The amount of current a wire can carry is proportional to its size (gauge), and the wire is generally sheathed with coatings and coverings to insulate and protect it from moisture, chemicals, heat, and abrasion. Copper is the primary material for electrical wire, but alloys are sometimes used to increase its strength or its resistance to chemicals and the environment. Wire can be composed of a single strand or of many smaller strands, depending on its use, and is typically annealed to improve its ductility. Electrical wire is commonly used in industrial, electronic, and automotive applications.Our enamelled wire has been widedly used in different types of industrial electronics, and it's been proved great quality and high stabiliy
FEATURES AND BENEFITS
-
High cut through
-
Excellent electricity performance
-
Good heat shock, adherence and flexibility
-
Great anti-radiation performance
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
EXECUTIVE STANDARDS
IEC, JIS and NEMA.
APPLICATIONS
Microelectronics components,Semiconductor
|
Nominal Diameter mm |
Tolerance |
Min. Increase of Diameter |
Max. Overall Diameter |
Breakdown Voltage |
|
Elongation |
Pin Hole |
Electrical Resistance |
|
|
|
mm |
|
|
≥ V |
|
≥% |
≤Default/5m |
Ω/km (20℃) |
|
|
|
|
|
|
Mandrel Method |
Twisted Method |
|
|
Min. |
Max. |
|
0.012 |
---- |
0.013 |
0.015 |
50.000 |
---- |
5.00 |
10.00 |
142.64 |
157.65 |
|
0.013 |
---- |
0.015 |
0.017 |
70.000 |
---- |
5.00 |
10.00 |
118.41 |
133.98 |
|
0.014 |
---- |
0.016 |
0.018 |
70.000 |
---- |
5.00 |
10.00 |
102.64 |
120.45 |
|
0.015 |
---- |
0.017 |
0.020 |
80.000 |
---- |
5.00 |
10.00 |
89.83 |
104.41 |
|
0.016 |
---- |
0.018 |
0.021 |
90.000 |
---- |
5.00 |
8.00 |
74.67 |
97.56 |
|
0.017 |
---- |
0.019 |
0.022 |
90.000 |
---- |
5.00 |
8.00 |
66.60 |
85.75 |
|
0.018 |
---- |
0.020 |
0.023 |
100.000 |
---- |
5.00 |
8.00 |
59.77 |
75.95 |
|
0.019 |
---- |
0.021 |
0.024 |
100.000 |
---- |
5.00 |
8.00 |
53.95 |
67.75 |
|
0.020 |
0.001 |
0.022 |
0.024 |
100.000 |
---- |
8.00 |
8.00 |
51.83 |
60.81 |
|
0.050 |
±0.002 |
0.007 |
0.062 |
400.000 |
1200.00 |
12.00 |
5.00 |
7981.00 |
9528.00 |
|
0.055 |
±0.002 |
0.007 |
0.068 |
400.000 |
1200.00 |
12.00 |
5.00 |
6642.00 |
7815.00 |
|
0.060 |
±0.002 |
0.007 |
0.073 |
500.000 |
1200.00 |
14.00 |
5.00 |
5614.00 |
6526.00 |
|
0.065 |
±0.002 |
0.007 |
0.078 |
500.000 |
1200.00 |
14.00 |
5.00 |
4807.00 |
5531.00 |
|
0.070 |
±0.002 |
0.007 |
0.083 |
500.000 |
1200.00 |
15.00 |
5.00 |
4163.00 |
4747.00 |
|
0.075 |
±0.002 |
0.007 |
0.088 |
550.000 |
1200.00 |
15.00 |
5.00 |
3640.00 |
4119.00 |
|
0.080 |
±0.002 |
0.008 |
0.094 |
550.000 |
1200.00 |
16.00 |
5.00 |
3209.00 |
3608.00 |
|
0.085 |
±0.002 |
0.008 |
0.099 |
550.000 |
1200.00 |
16.00 |
5.00 |
2851.00 |
3187.00 |
|
0.090 |
±0.002 |
0.010 |
0.106 |
650.000 |
1200.00 |
16.00 |
5.00 |
2550.00 |
2835.00 |
|
0.095 |
±0.002 |
0.010 |
0.111 |
650.000 |
1200.00 |
17.00 |
5.00 |
2294.00 |
2538.00 |
|
0.100 |
±0.002 |
0.011 |
0.118 |
650.000 |
1200.00 |
17.00 |
5.00 |
2074.00 |
2286.00 |
|
0.110 |
±0.002 |
0.011 |
0.129 |
---- |
1300.00 |
17.00 |
5.00 |
1720.00 |
1882.00 |
|
0.120 |
±0.002 |
0.011 |
0.139 |
---- |
1500.00 |
17.00 |
5.00 |
1450.00 |
1577.00 |
|
0.130 |
±0.002 |
0.011 |
0.149 |
---- |
1500.00 |
18.00 |
5.00 |
1239.00 |
1340.00 |
|
0.140 |
±0.002 |
0.011 |
0.159 |
---- |
1600.00 |
19.00 |
5.00 |
1070.00 |
1153.00 |
|
0.150 |
±0.002 |
0.011 |
0.169 |
---- |
1700.00 |
20.00 |
5.00 |
934.10 |
1002.00 |
|
0.160 |
±0.002 |
0.012 |
0.180 |
---- |
1700.00 |
21.00 |
5.00 |
822.30 |
879.40 |
|
0.170 |
±0.003 |
0.013 |
0.192 |
---- |
2000.00 |
22.00 |
5.00 |
721.10 |
787.10 |
|
0.180 |
±0.003 |
0.014 |
0.204 |
---- |
2000.00 |
22.00 |
5.00 |
644.40 |
700.70 |
|
0.190 |
±0.003 |
0.014 |
0.214 |
---- |
2000.00 |
23.00 |
5.00 |
579.40 |
627.80 |
|
0.200 |
±0.003 |
0.014 |
0.224 |
---- |
2000.00 |
23.00 |
5.00 |
523.70 |
565.70 |
