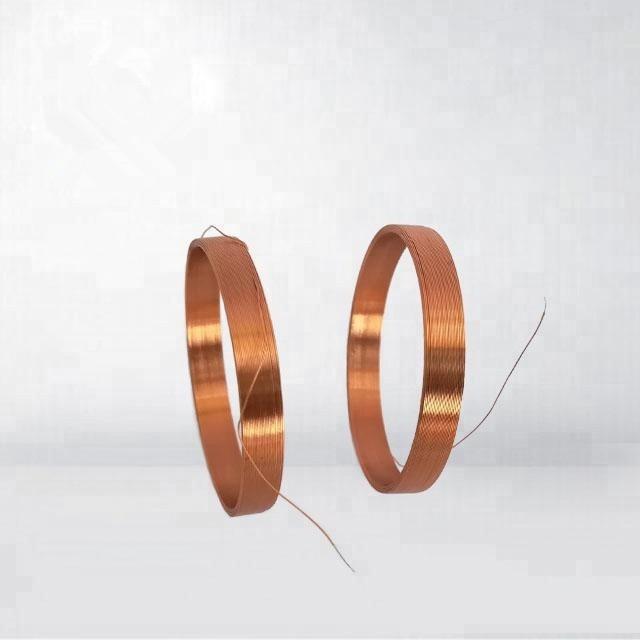

Round Colored Copper Wire Self Bonding Adhesive Polyurethane Enameled Magnet Wire

Price Negotiable

Price: Negotiation

MOQ: Different types with differet MOQ

Delivery Time: 2-15 workding days

Brand: Rvyuan

Product Description

ROUND COLORED COPPER WIRE SELF BONDING ADHESIVE POLYURETHANDE ENAMELED MAGNET WIRE

Enamelled copper wire comes in many different diameters, and with several different kinds of enamel. The diameters vary from less than that of a hair, to about that of a child’s finger. Different standards exist for the wire diameter. A very common one is American Wire Gauge, shortened to AWG, which is used in much of the world. Britain has its own standard, and in many countries the wire is specified simply by its diameter in millimeters.

FEATURES AND BENEFITS

Very good solderability that can be soldered without removal of coating.
Small tg δ value under high frequency electronic apparatus.
Easy to be dyed to different colors for identifying purpose when soldered.

APPLICATIONS

Standard motor
Small type motor ( Electric household appliance, Toys & etc.)
Oil immersed transformers
Transformer for measuring instrument
For communication : High frequency coil for transformer, Coil for power source transformer

SPECIFICATION

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance
	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.4	±0.004	0.025	0.437	----	2900	27	5	132.2	140
0.41	±0.004	0.025	0.447	----	2900	27	5	125.9	133.2
0.44	±0.004	0.025	0.477	----	2900	27	5	109.5	115.5
0.45	±0.004	0.025	0.487	----	2900	27	5	104.7	110.4
0.47	±0.004	0.026	0.508	----	3100	27	5	96.05	101.1
0.5	±0.004	0.026	0.539	----	3100	27	5	84.96	89.23
0.55	±0.004	0.027	0.59	----	3300	28	5	70.31	73.64
0.6	±0.005	0.027	0.64	----	3500	28	5	58.96	62.01
0.65	±0.005	0.027	0.69	----	3500	28	5	50.3	52.77
0.7	±0.005	0.029	0.742	----	3500	28	5	43.42	45.45
0.75	±0.005	0.03	0.794	----	3800	28	5	37.86	39.55
0.8	±0.005	0.032	0.846	----	3800	28	5	33.3	34.73
