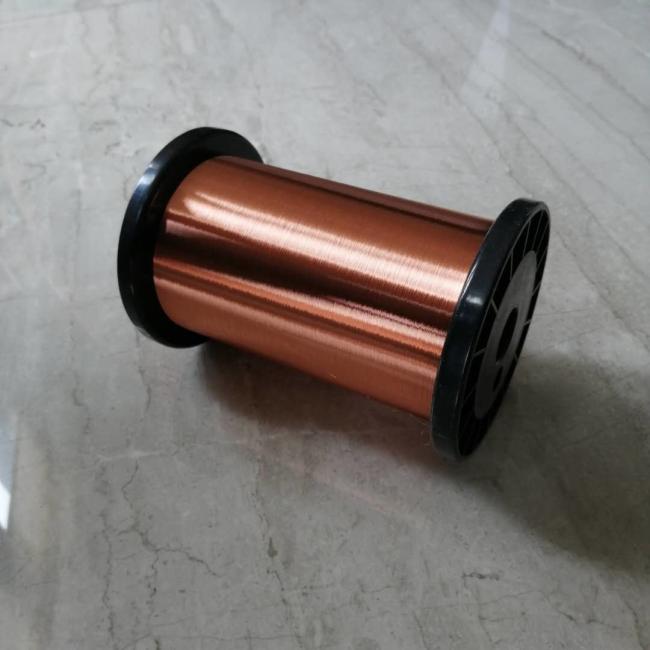

Solderable Enameled Copper Magnet Wire UEW / 2UEW 0.4 - 0.8mm Fine Winding Wire

Price Negotiable

Price: Negotiation

MOQ: 20 Kilogram/Kilograms

Delivery Time: 2-15 workding days

Brand: Rvyuan

Product Description

SOLDERABLE ENAMELED COPPER MAGNET WIRE UEW/2UEW 0.4-0.8MM FINE WINDING WIRE

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...
FEATURES AND BENEFITS

Can bear high temperature
Finest electrical properties
Gives superb performance

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance
	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.4	±0.004	0.025	0.437	----	2900	27	5	132.2	140
0.41	±0.004	0.025	0.447	----	2900	27	5	125.9	133.2
0.44	±0.004	0.025	0.477	----	2900	27	5	109.5	115.5
0.45	±0.004	0.025	0.487	----	2900	27	5	104.7	110.4
0.47	±0.004	0.026	0.508	----	3100	27	5	96.05	101.1
0.5	±0.004	0.026	0.539	----	3100	27	5	84.96	89.23
0.55	±0.004	0.027	0.59	----	3300	28	5	70.31	73.64
0.6	±0.005	0.027	0.64	----	3500	28	5	58.96	62.01
0.65	±0.005	0.027	0.69	----	3500	28	5	50.3	52.77
0.7	±0.005	0.029	0.742	----	3500	28	5	43.42	45.45
0.75	±0.005	0.03	0.794	----	3800	28	5	37.86	39.55
0.8	±0.005	0.032	0.846	----	3800	28	5	33.3	34.73
