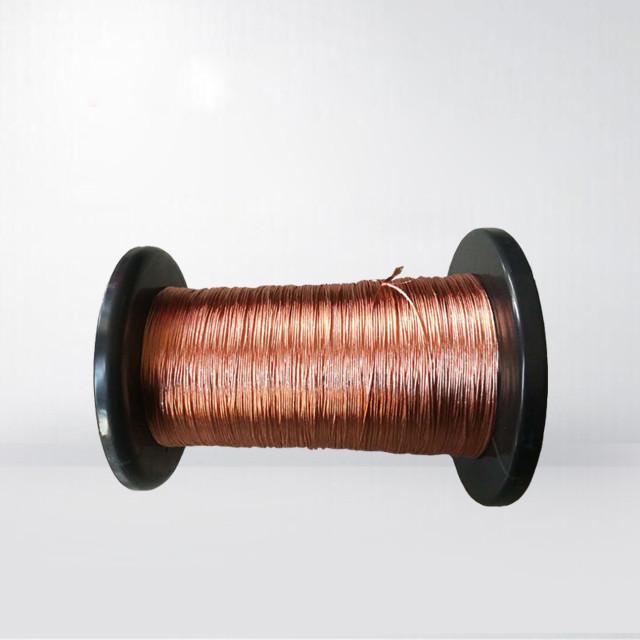

Litz wire is also called twisted wire, stranded wire, wire rope, is made of several strands of enamelled wire that are twisted together.Litz Wire is used to reduce the losses caused by the “skin-effect” in high frequency applications. Compare with single wire in same cross section, the usage of Litz wire can reduce resistance,increase inductance, and increase effectiveness and produce less heat. Meanwhile, Litz wire has much better mechanical flexibility.
FEATURES
-
Conductor : Solid and Stranded Copper & TIN PLATED Copper
-
Insulation : ETFE
-
Wall Thickness : 0.075-0.1mm
-
Temperature & Voltage Rating : Rating130℃ ~150℃ , 600V (Class B)
-
Dielectrical Strength:70KV/mm (0.1mm Wall Thickness : 6KV up)
-
Colors:ellow or other colors are acceptable.
APPLICATIONS
-
Internet connector
-
Audiphones
-
ID cards
-
Inductive heating
-
Magnetic components
-
Power supply and power wireless transfer,
-
Transformers for high frequency
-
Ultrasonic generators
|
Nominal conductordiameter(mm) |
Typical overall diameter(mm) |
Max. overall diameter(mm) |
Max.conductor resistance (ohms/km) |
Unit Weight(kg/km) |
|
7/0.10 |
0.524 |
0.580 |
346.9 |
0.679 |
|
7/0.11 |
0.554 |
0.610 |
285.2 |
0.797 |
|
7/0.12 |
0.590 |
0.650 |
238.4 |
0.931 |
|
7/0.13 |
0.620 |
0.680 |
202.4 |
1.069 |
|
7/0.14 |
0.650 |
0.710 |
173.8 |
1.217 |
|
7/0.15 |
0.680 |
0.740 |
151.1 |
1.375 |
|
7/0.16 |
0.716 |
0.770 |
132.4 |
1.550 |
|
7/0.17 |
0.746 |
0.800 |
117.0 |
1.728 |
|
7/0.18 |
0.776 |
0.830 |
104.2 |
1.917 |
|
7/0.19 |
0.806 |
0.860 |
93.34 |
2.115 |
|
7/0.20 |
0.836 |
0.890 |
84.10 |
2.323 |
|
7/0.21 |
0.866 |
0.920 |
76.18 |
2.541 |
|
7/0.22 |
0.896 |
0.950 |
69.96 |
2.769 |
|
7/0.23 |
0.932 |
0.990 |
63.91 |
3.017 |
|
7/0.24 |
0.962 |
1.020 |
58.61 |
3.265 |
|
7/0.25 |
0.992 |
1.050 |
53.94 |
3.523 |
|
7/0.26 |
1.022 |
1.080 |
49.81 |
3.792 |
|
7/0.27 |
1.052 |
1.110 |
46.13 |
4.070 |
|
7/0.28 |
1.082 |
1.140 |
42.85 |
4.358 |
|
7/0.29 |
1.112 |
1.170 |
39.91 |
4.656 |
|
7/0.30 |
1.148 |
1.200 |
37.01 |
4.976 |
