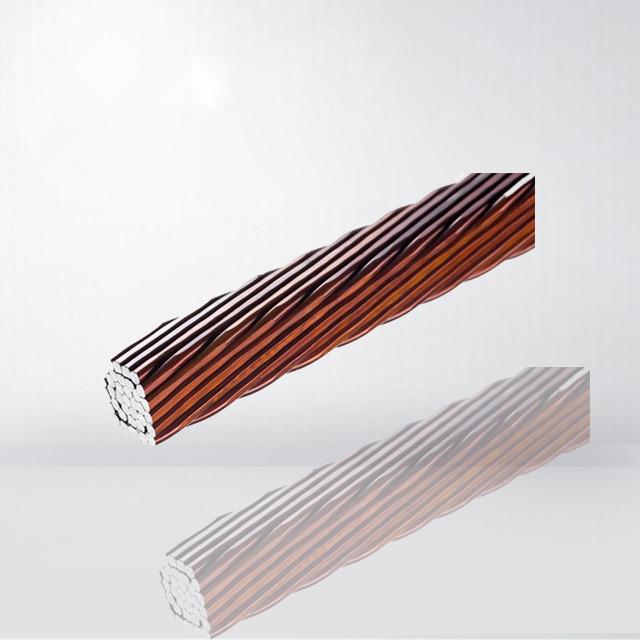

0.03 - 0.8mm 4000 Strands Super Litz Copper Wire Enameled Copper Wire For Transformer
0.03 - 0.8MM 4000 STRANDS SUPER LITZ COPPER WIRE ENAMELED COPPER WIRE FOR TRANSFORMER
Compared to single enameled wire, litz copper wire's surface area will be 200%-3400% more with same cross section, and the wire is more flexible. With this advantage, enameled litz wire is the first choice in high frequency or smaller frame size.The strands of litz wire is 2-4000pcs, and the twist pitch is 3-70mm.
SPECIFICATION
|
Characteristics |
Technical requests |
Test Results |
|||
|
Sample 1 |
Sample 2 |
Sample 3 |
|||
|
Surface |
Good |
OK |
OK |
OK |
|
|
Breakdown Voltage |
≥ 0.95 KV |
1.4 |
1.5 |
1.7 |
|
|
Enamel Continuity |
≤ 65 hole/5m |
1.6 |
1.3 |
1.2 |
|
|
Outer diameter |
≤ 0.091 mm |
0.080 |
0.080 |
0.081 |
|
|
Inner diameter |
0.07±0.003 mm |
0.067 |
0.067 |
0.068 |
|
|
Pitch |
32 mm |
OK |
OK |
OK |
|
|
Direction |
Right |
OK |
OK |
OK |
|
|
Solderability |
———— |
OK |
OK |
OK |
|
