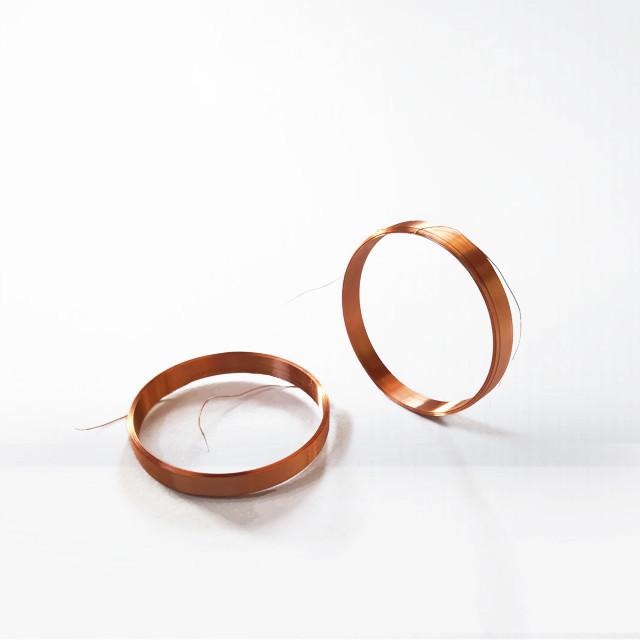

0.015mm Super Fine Enameled Copper Magnet Winding Wire For Relays / Transformer / Solenoids Coil
0.015MM SUPER FINE ENAMELED COPPER MAGNET WINDING WIRE FOR RELAYS/TRANSFORMERS/SOLENOIDS COIL
We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...
1) With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
2) Superior ''Q'' characteristic at high frequencies.
3) Excellent film adhension and flexibility.
4) Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.
TEST REPORT
| Test Item |
Unit |
Standard Value |
Reality Value | Remark |
||
| Min. | Ave. | Max. | ||||
| Conductor dimensions | mm | 0.015±0.001 | 0.015 | 0.015 | 0.015 | |
| (Basecoat dimensions) Overall dimensions | mm | Max.0.018 | 0.0171 | 0.0171 | 0.0171 | |
| Insulation Film Thickness | mm | Min. 0.002 mm | 0.0021 | 0.0021 | 0.0021 | |
| Bonding Film Thickness | mm | / | / | / | / | |
| Continuity of covering | Pcs | Max.60 | Max.0 | |||
| Flexibility | / | / | ||||
| Adherence | no crack | Good | ||||
| Breakdown Voltage | V | Min.120 | Min.283 | |||
| Resistance to Softening (Cut Through) | ℃ | Continue 2 times pass | 200℃/Good | |||
| (390℃±5℃) Solder test | s | Max.2 | Max. 1.5 | |||
| Bonding Strength | g | / | / | |||
| Electrical Resistance | Ω/m | 89.83-104.41 | 95.7 | 95.7 | 95.7 | |
| Elongation | % | Min.5 | 8 | 8 | 8 | |
| Breaking Load | N | Min | / | / | / | |
| Surface appearance | Smooth | Good | ||||
| Test Result: OK | Synthetic Evaluation: OK | |||||
