Uew 155 / 180 Ultra Fine Enamelled Copper Wire Self Bonding Wire Higher Elongation With Solderability
UEW 155 / 180 ULTRA FINE ENAMELED COPPER WIRE SELF BONDING WIRE HIGHER ELONGATION WITH SOLDERABILITY

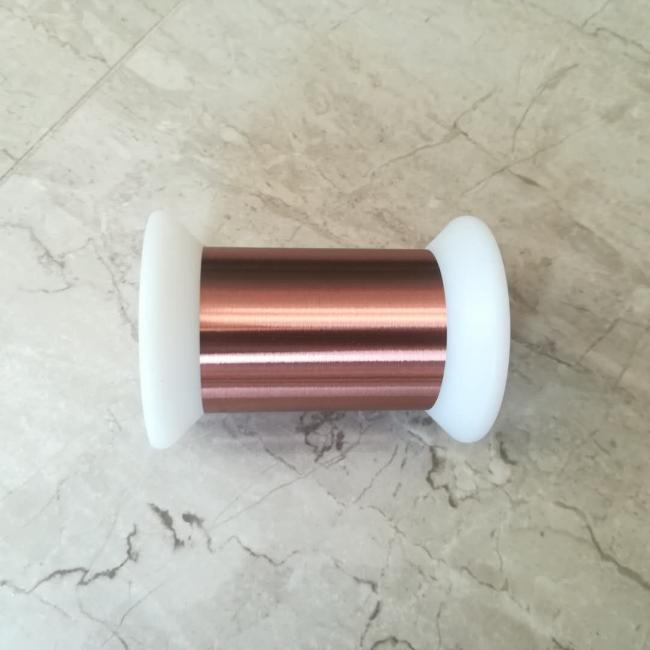

UEW155 /180 ultra fine enameled copper wire is our professional field, we have involved in ultra fine enameled copper wire for 16 years, our wire range start from 0.012mm, we may be the only one can provide so thin wire im mass production in alibaba.
Not only we are the provider of ultra fine enameled copper wire, but also solution provider, because our products have been used in many different fileds and countries, we know how to help our customer.
FEATURES
-
Temperature Rate: 155/180
-
Great consistency: 0 pinhole, no quality issue for long time storage
-
Excellant winding quality:Higher elongation, seldom broken during high speed winding
-
Marvelous breakdown voltage uniform coating, 3-6times than standard
-
Size range:start from 0.012mm
SPECIFICATION
|
Nominal Diameter mm |
Tolerance |
Min. Increase of Diameter |
Max. Overall Diameter |
Breakdown Voltage |
|
Elongation |
Pin Hole |
Electrical Resistance |
|
|
|
mm |
|
|
≥ V |
|
≥% |
≤Default/5m |
Ω/km (20℃) |
|
|
|
|
|
|
Mandrel Method |
Twisted Method |
|
|
Min. |
Max. |
|
0.012 |
---- |
0.013 |
0.015 |
50 |
---- |
5 |
10 |
142.64 |
157.65 |
|
0.013 |
---- |
0.015 |
0.017 |
70 |
---- |
5 |
10 |
118.41 |
133.98 |
|
0.014 |
---- |
0.016 |
0.018 |
70 |
---- |
5 |
10 |
102.64 |
120.45 |
|
0.015 |
---- |
0.017 |
0.02 |
80 |
---- |
5 |
10 |
89.83 |
104.41 |
|
0.016 |
---- |
0.018 |
0.021 |
90 |
---- |
5 |
8 |
74.67 |
97.56 |
|
0.017 |
---- |
0.019 |
0.022 |
90 |
---- |
5 |
8 |
66.6 |
85.75 |
|
0.018 |
---- |
0.02 |
0.023 |
100 |
---- |
5 |
8 |
59.77 |
75.95 |
|
0.019 |
---- |
0.021 |
0.024 |
100 |
---- |
5 |
8 |
53.95 |
67.75 |
|
0.02 |
0.001 |
0.022 |
0.024 |
100 |
---- |
8 |
8 |
51.83 |
60.81 |
|
0.05 |
±0.002 |
0.007 |
0.062 |
400 |
1200 |
12 |
5 |
7981 |
9528 |
|
0.055 |
±0.002 |
0.007 |
0.068 |
400 |
1200 |
12 |
5 |
6642 |
7815 |
|
0.06 |
±0.002 |
0.007 |
0.073 |
500 |
1200 |
14 |
5 |
5614 |
6526 |
|
0.065 |
±0.002 |
0.007 |
0.078 |
500 |
1200 |
14 |
5 |
4807 |
5531 |
|
0.07 |
±0.002 |
0.007 |
0.083 |
500 |
1200 |
15 |
5 |
4163 |
4747 |
|
0.075 |
±0.002 |
0.007 |
0.088 |
550 |
1200 |
15 |
5 |
3640 |
4119 |
|
0.08 |
±0.002 |
0.008 |
0.094 |
550 |
1200 |
16 |
5 |
3209 |
3608 |
|
0.085 |
±0.002 |
0.008 |
0.099 |
550 |
1200 |
16 |
5 |
2851 |
3187 |
|
0.09 |
±0.002 |
0.01 |
0.106 |
650 |
1200 |
16 |
5 |
2550 |
2835 |
|
0.095 |
±0.002 |
0.01 |
0.111 |
650 |
1200 |
17 |
5 |
2294 |
2538 |
