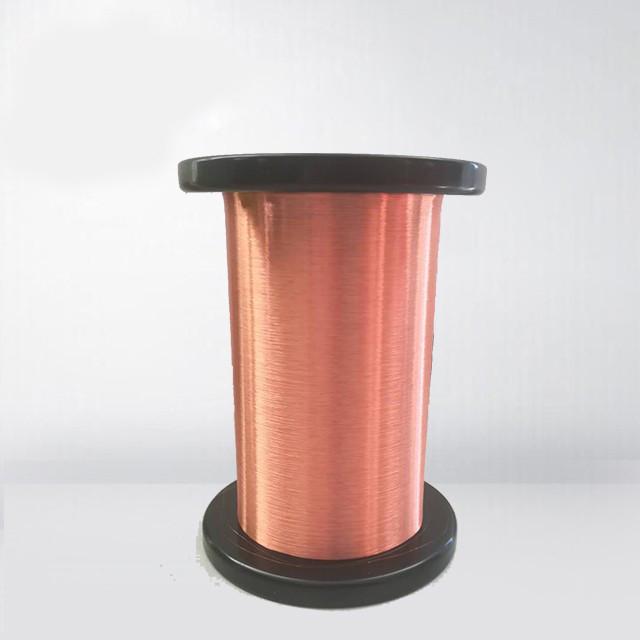

0.08mm Self Bonding Enameled Copper Wire Enameled Wire
Price:
Negotiation
MOQ:
Different types with differet MOQ
Delivery Time:
2-15 workding days
Brand:
Rvyuan
Product Description
0.08MM SELF BONDING ENAMELED COPPER WIRE ENAMELED WIRE
- The insulated wire is enameled wire, in itegral molded inductor, SMD inductor, it needs high temperature self bonding wire with hot wind or solvent bonding method.
- A special type of enamelled wire is selfbonding wire or bondable wire. Selfbonding wire is an enamelled wire as described under Enamelled Wire Types, with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.
- Self bonding wire can be supplied with different conductor materials such as selfbonding copper clad aluminum wire, selfbonding aluminum wire etc.
Characteristics |
Technical requests |
Test Results |
|||
Surface |
Good |
OK |
OK |
OK |
|
Bare Wire Diameter |
0.080±0.002 |
0.45 |
0.45 |
0.45 |
|
Coating Thickness |
≥ 0.008 mm |
0.011 |
0.012 |
0.012 |
|
Overall Diameter |
≤ 0.094 mm |
0.091 |
0.092 |
0.092 |
|
Conductor Resistance |
≤ 3.608 Ω/m |
3.456 |
3.443 |
3.437 |
|
Elongation |
≥ 16 % |
19 |
19 |
20 |
|
Breakdown Voltage |
≥ 425 V |
1578 |
1496 |
1723 |
|
Pinhole Test |
≤ 5 holes/5m |
0 |
0 |
0 |
|
Continuity |
≤ 40 holes/30m |
0 |
0 |
0 |
|
Adhesive |
Coating layer is good |
OK |
|||
Cut-through |
200℃ 2minsno breakdown |
OK |
|||
Heat Shock |
175±5℃/30minno crack |
OK |
|||
