IEC Standard 0.03mm Enamel Coated Copper Wire G2 Class 180 For Tannsformer

Price Negotiable

Price: Negotiation

MOQ: Different types with differet MOQ

Delivery Time: 2-15 workding days

Brand: Rvyuan

Product Description

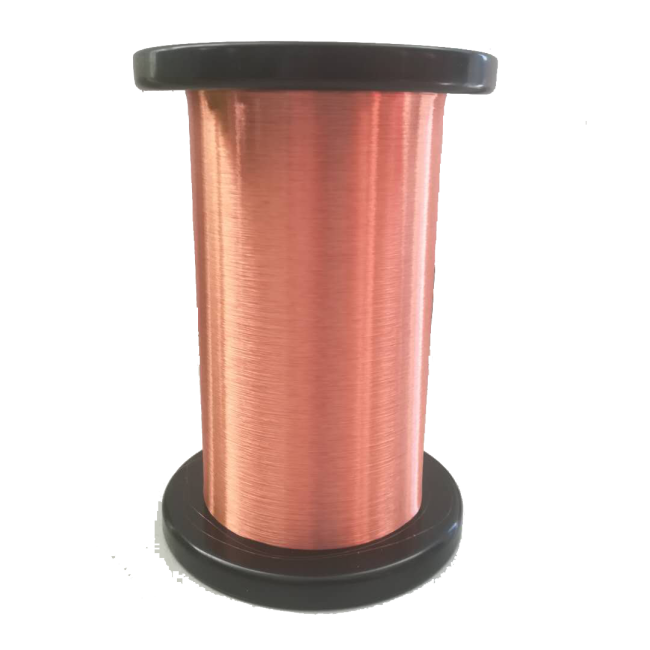

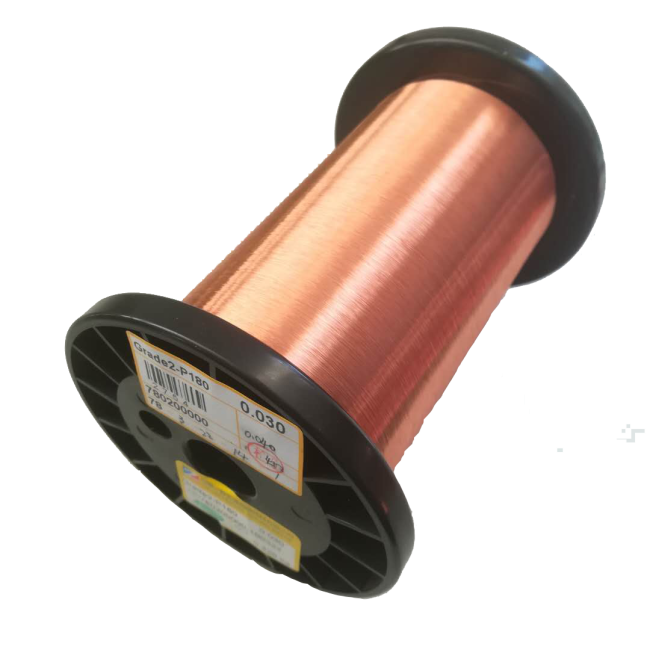

IEC STANDARD 0.03MM ENAMELED COATED COPPER WIRE G2 CLASS 180 FOR TRANSFORMER

IEC standard ultra thin 0.03mm enameled copper wire has been widely used in transformer, very good elongation and solderability help you to improve your quality.Our advanced craft makes the very excellent quality, that is accepted in European Ameican market. From the details of picture and video, you can see how good it is!

FEATURES

With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
Superior ''Q'' characteristic at high frequencies.
Excellent film adhension and flexibility.
Extremely resistant to a variety of solvents including most varnishes and hardener catalysts

APPLICATION

Copper Silver Alloy:HIgh end speaker coils, audio connection wire application. Silver Content:0.1-10%
Copper Zin Alloy: Gas nozzle, electro discharge machine, heating device. Zinc Content:10-30%
Copper Tin Alloy: Heating components application. Tin content:0.15%-6%
Copper Nickel Alloy: Heating components, resistance wire. Nickel content:2%-23%

SPECIFICATION

	Characteristics			Technical requests		Test Results				Conclusion
						Sample 1
1	Surface			Good		OK				OK
2	Bare Wire Diameter			0.030±	0.001	0.03				OK
					0.001
3	Coating Thickness			≥ 0.008 mm		0.01				OK
4	Overall Diameter			≤ 0.042 mm		0.04				OK
5	Conductor Resistance			≤ 26.103Ω/m		24.72				OK
6	Elongation			≥ 10 %		21.1				OK
7	Breakdown Voltage			≥ 275 V		2160				OK
8	Pinhole Test			≤ 5 hole/5m		0				OK
Remark
		Test Items	Technical Requests				Results	Conclusion:
1		Adhesive	Coating layer is good				OK	Approved
2		Cut-through	230℃ 2mins no breakdown				OK
3		Heat Shock	200±5℃/30min no crack				OK	Audit by	Tested by
4		Solder Ability	390± 5℃ 2 Sec Smooth				OK		Pan Lihong
5		Solvent Resistance	No blister, no expansion, no shed				OK
