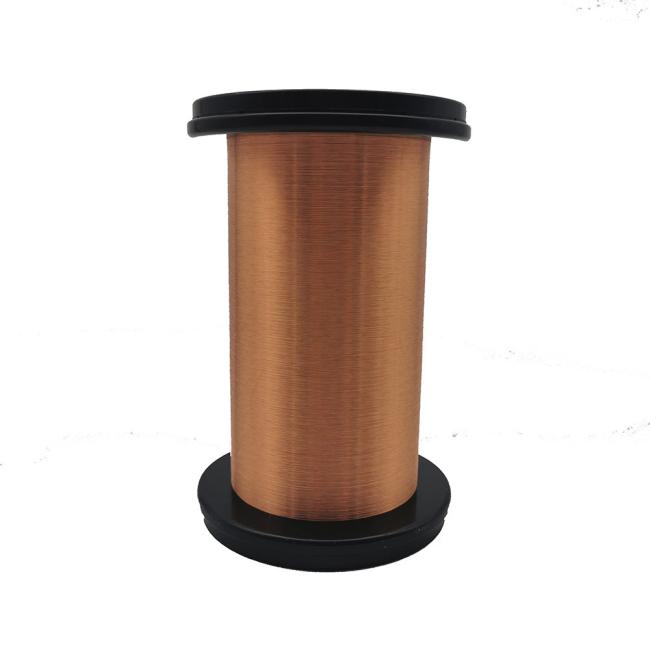

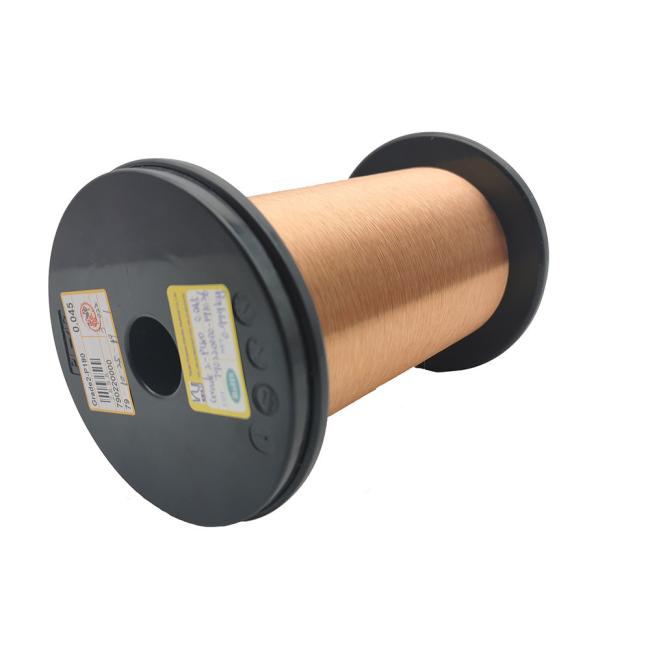

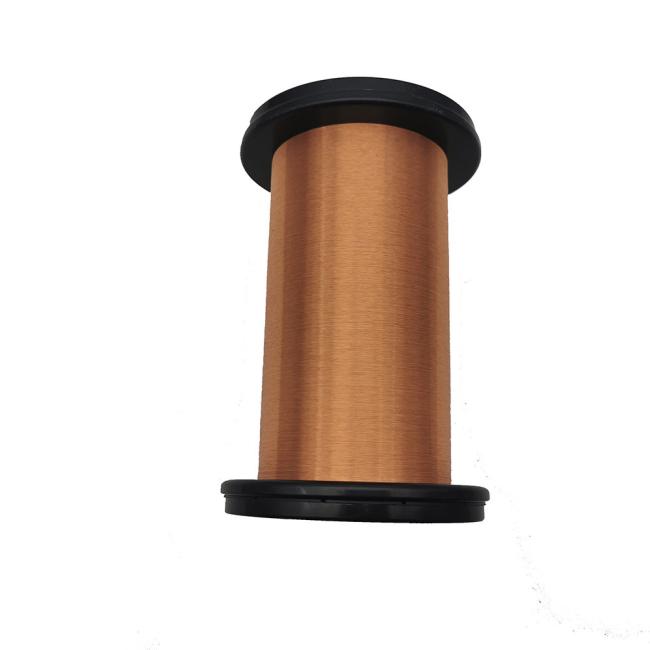

0.1mm-1mm Magnetic Copper Wire Enamel Coating For Motor Winding FIW Wire

Price Negotiable

Price: Negotiation

MOQ: Different types with differet MOQ

Delivery Time: 2-15 workding days

Brand: Rvyuan

Product Description

0.1MM-1MM COPPER TRIPLE INSULATED WIRE TIW-B WITH UL CERTIFICATE

Fully insulated (FIW) zero-defect enamelled round copper wire ,class 180,is wire with high thermal class, Zero-defect strengthened insulation and high voltage resistance compliance with IEC60317-56.The wire can meet the requirements of miniaturized components, good winding performance and low cost, applied small transformer, electronic switch etc. The wire is the best substitute material for TIW(Triple Insulated Wire).

SPECIFICATION

Conductor m/m		End product m/m		Maximum Conductor Resistance at 20 ℃	Minimum Elongation %
Diameter m/m	Tolerance m/m	Target outside diameter	Tolerance m/m
Diameter m/m	Tolerance m/m	Target outside diameter	Tolerance m/m
0.15	±0.008	0.35	±0.02	1111	15
0.16	±0.008	0.36	±0.02	908.8	15
0.17	±0.008	0.37	±0.02	853.5	15
0.18	±0.008	0.38	±0.02	757	15
0.19	±0.008	0.39	±0.02	676.2	15
0.2	±0.008	0.4	±0.02	607.6	15
0.21	±0.008	0.41	±0.02	549	15
0.22	±0.008	0.42	±0.02	498.4	15
0.23	±0.008	0.43	±0.02	454.5	15
0.24	±0.008	0.44	±0.02	416.2	15
0.25	±0.008	0.45	±0.02	382.5	15
0.26	±0.010	0.46	±0.02	358.4	15
0.27	±0.010	0.47	±0.02	331.4	15
0.28	±0.010	0.48	±0.02	307.3	15
0.29	±0.010	0.49	±0.02	285.7	20
0.3	±0.010	0.5	±0.02	262.9	20
0.32	±0.010	0.52	±0.02	230	20
0.35	±0.010	0.55	±0.02	191.2	20
0.37	±0.010	0.57	±0.02	170.6	20
0.4	±0.010	0.6	±0.02	145.3	20
0.45	±0.010	0.65	±0.02	114.2	20
0.5	±0.010	0.7	±0.02	91.4	20
0.55	±0.020	0.75	±0.02	78.2	20
0.6	±0.020	0.8	±0.02	65.3	20
0.65	±0.020	0.85	±0.02	88.3	20
0.7	±0.020	0.9	±0.02	47.2	20
0.75	±0.020	0.95	±0.02	41.2	20
0.8	±0.020	1	±0.02	36.1	25
0.85	±0.020	1.05	±0.02	31.9	25
0.9	±0.020	1.1	±0.02	28.4	25
0.95	±0.020	1.15	±0.02	25.4	25
1	±0.030	1.2	±0.02	23.3	25
