UL Certificated 0.2mm Triple Insulated Wire UEW Thin Insulated Wire TIW Enameled Copper Winding Wire

0.2MM TRIPLE INSULATED WIRE UEW INSULATION ENAMELED WINDING WIRE

We have 19 high-speed production lines with a monthly production capacity of 150 million meters, the largest production scale in China; we have our own insulation material formula and intellectual property rights; our triple insulated wire have passed UL, German VDE and China CQ C authority Certified, and obtained UL insulation system; we have a core competitive engineering and technical team, and continue to provide customers with quality products and services.

Our triple insulated wire meets all the leading international safety codes and enables transformers to be manufactured to meet safety isolation standards without the need of margins and tape barriers.The increased winding space permits smaller transformers to be designed and reduces manufacturing time and cost, Conductor diameters range from 0.1 mm to 1 mm.

Features and Benefits:

1. Consist of three layers of insulation. Completely isolate the primary winding from the secondary winding of transformers.
2. Greatly reduce the size and weight of transformers.
3. Greatly improve the efficiency of the transformer by reducing the distance between coils.
4. Allow to wind directly on the top of enameled wires. Eliminate the interleaved insulation tapes, barriers and insulating sleeves.
5. Solderable without the need of insulation pre-stripping

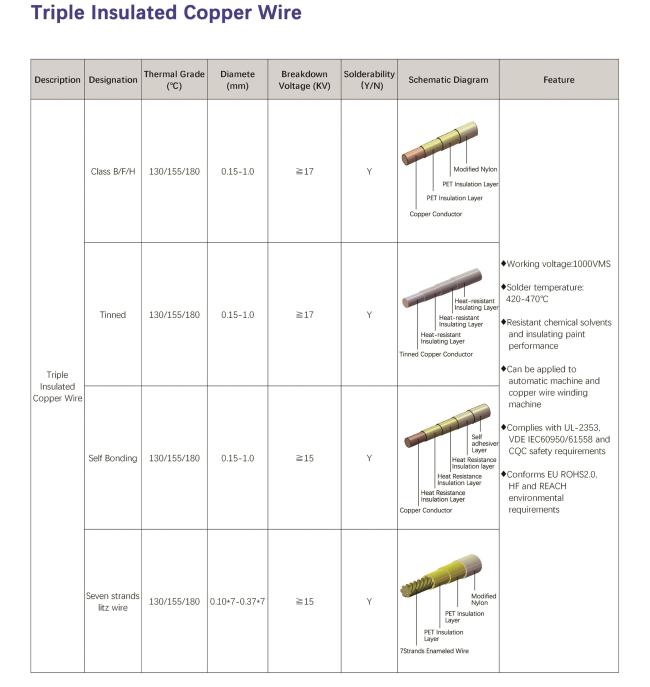

Specification:

	Characteristics	Test Standard	Conclusion
1	Package	Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton’s seal is complete	OK
2	Bare Wire Diameter	0.20±0.008MM	0.195-0.203
3	Overall Diameter	0.40±0.020MM	0.391-0.399
4	Conductor Resistance	MAX: 595.50Ω/KM	558Ω/KM
5	Breakdown voltage of straight wire	The length of wire 305mm,wind on the copper bar, test condition 1mA/60s/6.0KV	OK
6	Elongation	MIN:15%	20-23.6%
7	Solder ability	430± 5℃ 3-4 Secs	OK
Conclusion		Qualified
