AWG 24-56 Enameled Copper Winding Wire Self Bonding Wire For Relays / Solenoids Coil / Motor Winding
AWG 24-56 ENAMELED COPPER WINDIGN WIRE SELF BONDING WIRE FOR RELAYS SOLENOIDS COIL MOTOR WINDING
Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.
FEATURES
-
Excellent crazing,abrasion,chemical resistance and provides good thermal stability.
-
PEW has excellent physical properties for example, fexibility abrasion resistance adhesion...,better than PVF. Enamelled copper winding wireFine copper wire price
SPECIFICATION

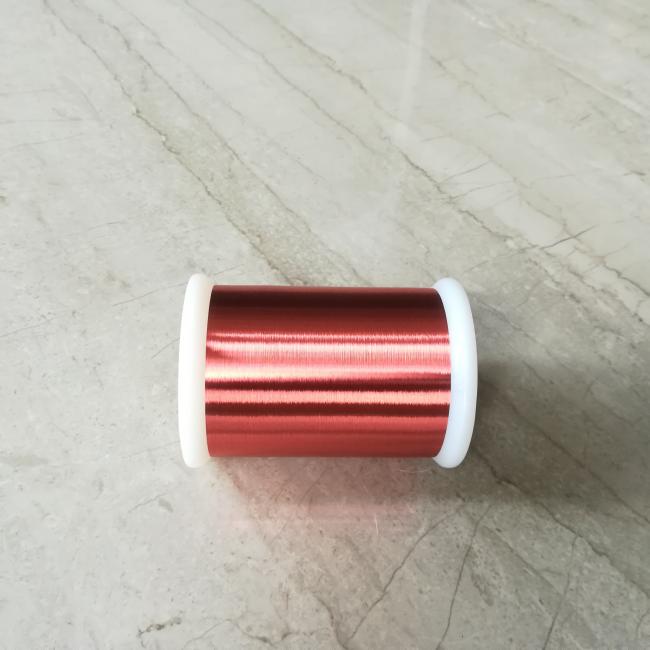

Polyurethane Enameled Copper Wire
Conductor Material:Copper
Diameter: 0.013-2.00mm enameled copper wire
Standard: IEC, NEMA, GB,JIS
Thermal Class: 130,155,180 centigrade
Enameled types : UEW,QA Fine copper wire price
Certification:UL Approved, ISO9001,ISO14001,RoHS
Fine copper wire price
|
Nominal Diameter mm |
Tolerance |
Min. Increase of Diameter |
Max. Overall Diameter |
Breakdown Voltage |
|
Elongation |
Pin Hole |
Electrical Resistance |
|
|
|
mm |
|
|
≥ V |
|
≥% |
≤Default/5m |
Ω/km (20℃) |
|
|
|
|
|
|
Mandrel Method |
Twisted Method |
|
|
Min. |
Max. |
|
0.012 |
---- |
0.013 |
0.015 |
50 |
---- |
5 |
10 |
142.64 |
157.65 |
|
0.013 |
---- |
0.015 |
0.017 |
70 |
---- |
5 |
10 |
118.41 |
133.98 |
|
0.014 |
---- |
0.016 |
0.018 |
70 |
---- |
5 |
10 |
102.64 |
120.45 |
|
0.015 |
---- |
0.017 |
0.02 |
80 |
---- |
5 |
10 |
89.83 |
104.41 |
|
0.016 |
---- |
0.018 |
0.021 |
90 |
---- |
5 |
8 |
74.67 |
97.56 |
|
0.017 |
---- |
0.019 |
0.022 |
90 |
---- |
5 |
8 |
66.6 |
85.75 |
|
0.018 |
---- |
0.02 |
0.023 |
100 |
---- |
5 |
8 |
59.77 |
75.95 |
|
0.019 |
---- |
0.021 |
0.024 |
100 |
---- |
5 |
8 |
53.95 |
67.75 |
|
0.02 |
0.001 |
0.022 |
0.024 |
100 |
---- |
8 |
8 |
51.83 |
60.81 |
|
0.05 |
±0.002 |
0.007 |
0.062 |
400 |
1200 |
12 |
5 |
7981 |
9528 |
|
0.055 |
±0.002 |
0.007 |
0.068 |
400 |
1200 |
12 |
5 |
6642 |
7815 |
|
0.06 |
±0.002 |
0.007 |
0.073 |
500 |
1200 |
14 |
5 |
5614 |
6526 |
