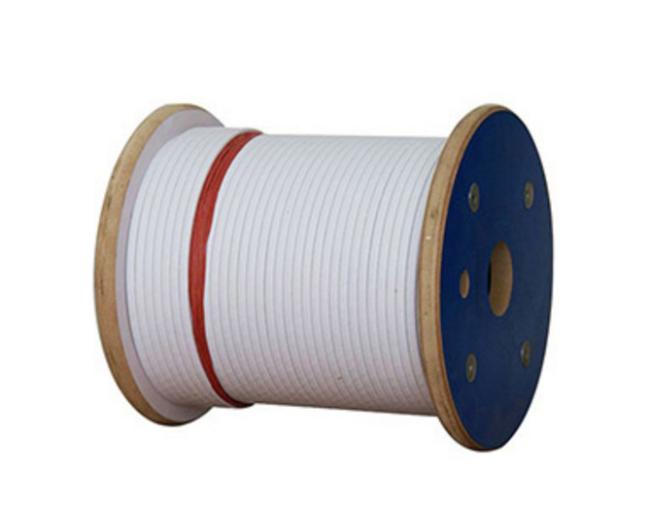

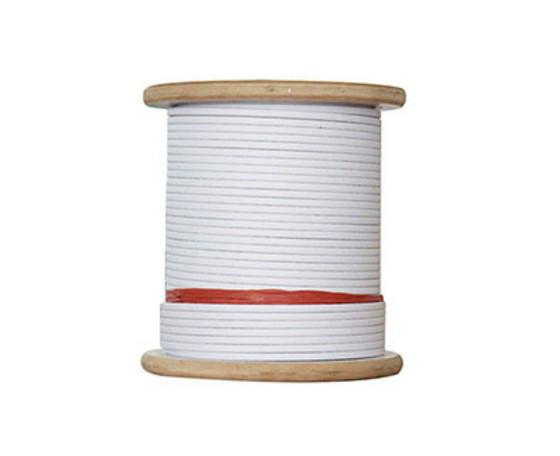

PAPER COVERED COPPER WIRE MAGNET LITZ WIRE FOR WINDIGN

The manufacture process is as follows: Strips of mutual insulated round copper wire transpose, strand, roll into rectangular section wire in the same direction at certain pitch, then insulating film and insulating composite materials is wrapped from inside to outside.

Here are three types:

1.Paper insulated polyvinyl-acetal enameled Continuously Transposed copper wire

2.Paperless Insulated Netting-type Continuously Transposed copper wire

3.Heat Resistant Continuously Transposed enameled copper wire

FEATURES

1.Reduce additional circulation current loss

2.Eddy-current loss caused by leaking magnet field

3. Improve the mechanical strength of coil

APPLICATION

Coil winding of large oil-immersed power transformer and reactor, large capacity dry type transformers.
