0.2mm Triple Insulated Wire

Price Negotiable

Price: Negotiation

MOQ: 3000meters

Delivery Time: 2-15 days

Brand: Ruiyuan

Product Description

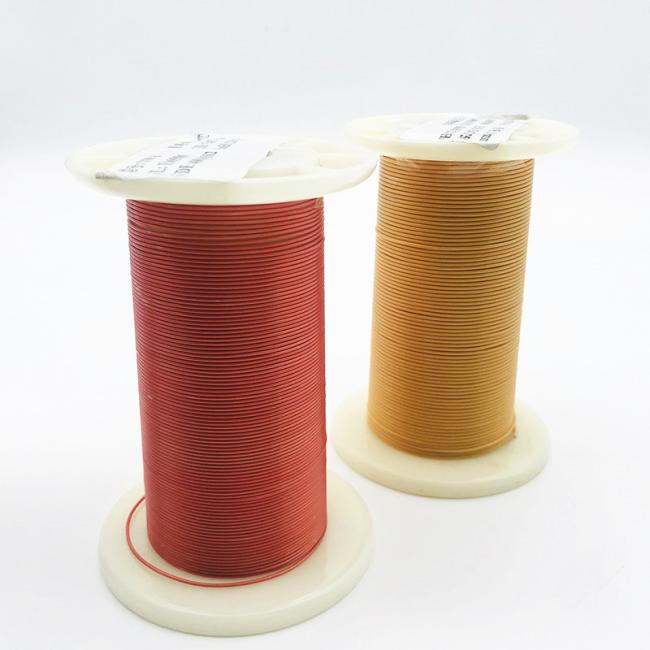

0.3mm TIW Red Color Copper Enameled Wire Triple Insulated Wire

With UL system certification

We have 19 high-speed production lines with a monthly production capacity of 150 million meters, the largest production scale in China; we have our own insulation material formula and intellectual property rights; our triple insulated wire have passed UL, German VDE and China CQ C authority Certified, and obtained UL insulation system; we have a core competitive engineering and technical team, and continue to provide customers with quality products and services.

Characteristics	Test Standard	Conclusion
Package	Whether Package condition is good(including carton,spool, PE film, Air bubble film).Whether carton's seal is complete	OK
Bare Wire Diameter	0.20±0.008MM	OK
Overall Diameter	0.40±0.020MM	OK
Conductor Resistance	MAX: 595.5Ω/KM	OK
Breakdown voltage of straight wire	The length of wire 305mm,wind on the copper bar, test condition 1mA/60s5.0KV	OK
Elongation	MIN:15%	OK
Solder ability	430± 10℃ 3-5 Secs	OK
Conclusion	Qualified
