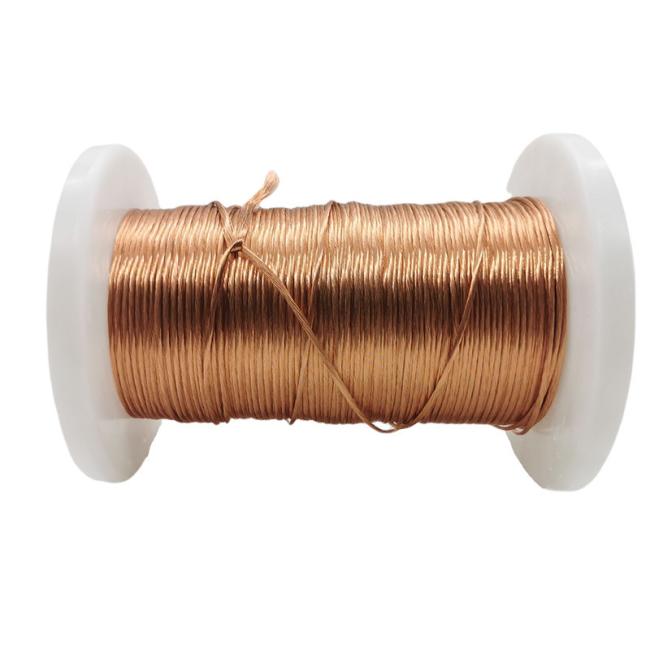

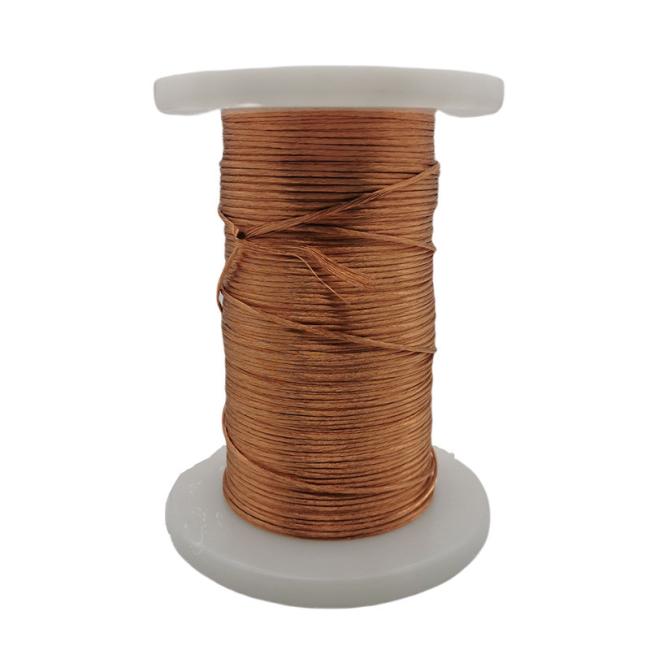

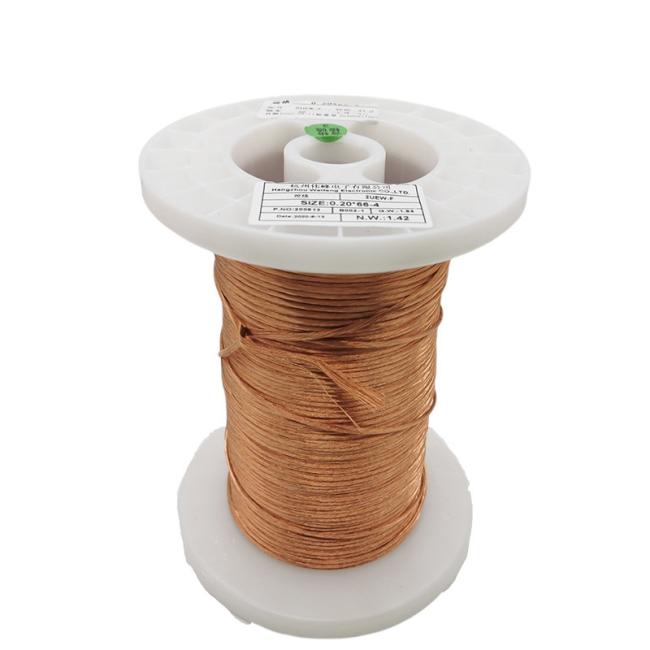

0.1mm X 300 Strands Stranded Litz Magnet Wire

Price Negotiable
Price: Negotiation
MOQ: 20 Kilogram/Kilograms
Delivery Time: 2-15 days
Brand: Ruiyuan
Product Description

0.1mm x 300 Strands High Frequency Stranded Wire Copper Litz Wire






Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). Each thin conductor is less than a skin-depth, so an individual strand does not suffer an appreciable skin effect loss. The strands must be insulated from each other—otherwise all the wires in the bundle would short together, behave like a single large wire, and still have skin effect problems. Furthermore, the strands cannot occupy the same radial position in the bundle over long distances: the electromagnetic effects that cause the skin effect would still disrupt conduction. The weaving or twisting pattern of the wires in the bundle is designed so that the individual strands are on the outside of the bundle for a distance (where the EM field changes are smaller and the strand sees low resistance), and are inside for a distance (where the EM field changes are the strongest and the resistance is higher). If each strand has a comparable impedance, current is distributed equally among every strand within the cable. This allows the interior of the litz wire to contribute to the overall conductivity of the bundle.





FEATURES

  • Outer insulation material: Dacron fiber, Nylon fiber.

  • Diameter of strands: 0,020 - 0,500 mm

  • Overall diameter: 0.1-8mm

  • Max cross section area: 38mm2

APPLICATION

Peaking coil, Antenna coil, Channel coil, IF coil

Ignition coil; High frequency coil
