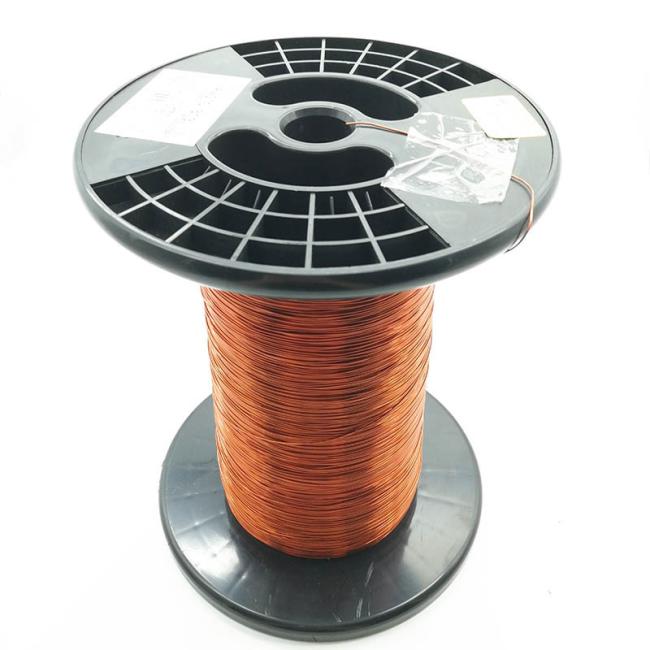

23AWG 0.6mm 1UEW155 / 180 Magnetic Wire Enameled Copper Wire
23AWG 0.6mm 1UEW155 / 180 Magnetic Wire Enameled Copper Wire
We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with a share of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...
FEATURES AND BENEFITS
-
HIgh tensile strength. 25% higher than copper wire
-
Good bending strength
-
high conductivity. >93%IACS
-
Excellent solderability,
-
Excellent audio property.
|
Characteristics |
Technical request |
Test Results |
Conclusion |
|||||||||
| Sample 1 |
Sample 2 |
Sample 3 |
||||||||||
| 1 | Surface |
Good |
OK | OK | OK | OK | ||||||
| 2 | Conductor diameter | 0.600± | 0.005 | 0.600 | 0.600 | 0.600 | OK | |||||
| 0.005 | ||||||||||||
| 3 | Coating thickness | ≥ 0.048 mm | 0.0520 | 0.0530 | 0.0520 | OK | ||||||
| 4 | Overall diameter | ≤ 0.661 mm | 0.6520 | 0.6530 | 0.6520 | OK | ||||||
| 5 | Conductor resistance | ≤ 0.0620 Ω/m | 0.0616 | 0.0615 | 0.0617 | OK | ||||||
| 6 | Elongation | ≥ 28 % | 31 | 30 | 31 | OK | ||||||
| 7 | Breakdown voltage | ≥ 4300 V | 5682 | 5853 | 5858 | OK | ||||||
| 8 | Pinhole test | ≤ 3 faults/5m | 0 | 0 | 0 | OK | ||||||
| Remark: | ||||||||||||
|
Test Items |
Technical Requests |
Results |
Conclusion: Approved |
|||||||||
| 1 |
Adhesive |
Coating layer is good |
OK | |||||||||
| 2 |
Cut-through |
200℃ 2mins no breakdown | OK | |||||||||
| 3 |
Heat Shock |
175±5℃/30min no crack | OK | |||||||||
| 4 |
Solder Ability |
390± 5℃ 2Sec Smooth | OK | |||||||||
| 5 |
Solvent Resistanc |
No blister, no expansion, no shed |
OK | |||||||||
