Class 130 0.16mm TIW Enameled Copper Winding Wire

Price Negotiable

Price: Negotiation

MOQ: 20 Kilogram/Kilograms

Delivery Time: 2-15 days

Brand: Ruiyuan

Product Description

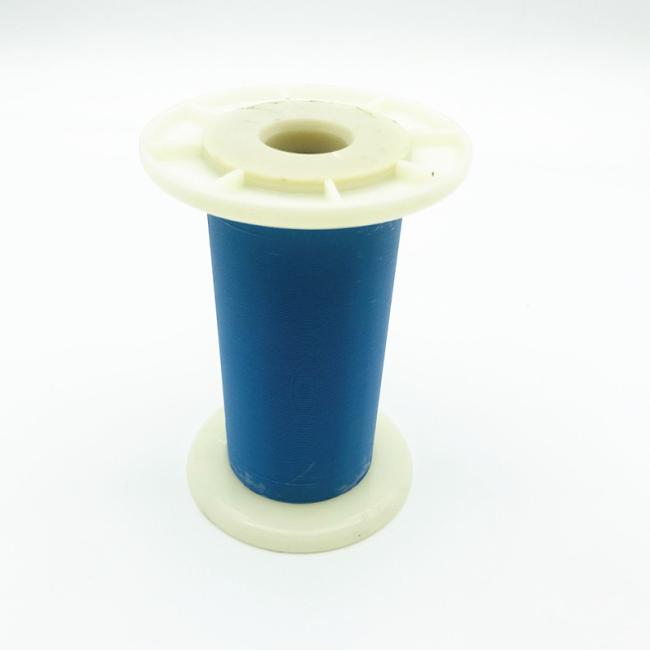

Class 130 0.16mm TIW Enameled Copper Winding Wire Triple Insulated Wire

We have 19 high-speed production lines with a monthly production capacity of 150 million meters, the largest production scale in China; we have our own insulation material formula and intellectual property rights; our triple insulated wire have passed UL, German VDE and China CQ C authority Certified, and obtained UL insulation system; we have a core competitive engineering and technical team, and continue to provide customers with quality products and services.

Conductor m/m	Maximum Conductor Resistance at 20 ℃	Elongation	Electrical Resistance
Diameter m/m		≥%	Ω/km (20℃)
			Min.
0.15	1111	5.00	142.64
0.16	908.8	5.00	118.41
0.17	853.5	5.00	102.64
0.18	757	5.00	89.83
0.19	676.2	5.00	74.67
0.2	607.6	5.00	66.60
0.21	549	5.00	59.77
0.22	498.4	5.00	53.95
0.23	454.5	8.00	51.83
0.24	416.2	12.00	7981.00
0.25	382.5	12.00	6642.00
0.26	358.4	14.00	5614.00
0.27	331.4	16.00	2851.00
0.28	307.3	16.00	2550.00
0.29	285.7	17.00	2294.00
0.3	262.9	17.00	2074.00
0.32	230	17.00	1720.00
0.35	191.2	17.00	1450.00
0.37	170.6	18.00	1239.00
0.4	145.3	19.00	1070.00
0.45	114.2	20.00	934.10
0.5	91.4	21.00	822.30
0.55	78.2	22.00	721.10
0.6	65.3	22.00	644.40
0.65	88.3	23.00	579.40
0.7	47.2	23.00	523.70
0.75	41.2	23.00	475.70
0.8	36.1	23.00	434.00
0.85	31.9	24.00	397.50
0.9	28.4	24.00	365.50
0.95	25.4	24.00	337.10
1	23.3	25.00	309.60
