China 0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire for sale

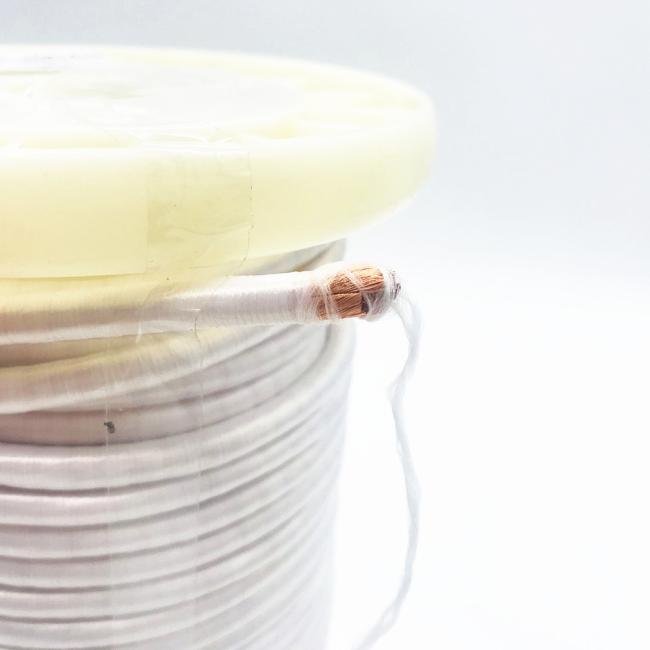

0.05mm x 660 Strands Silk Covered Litz Wire USTC Copper Litz Wire

Price Negotiable
Price: Negotiation
MOQ: 20kg
Delivery Time: 2-15 days
Brand: Ruiyuan
Product Description

0.1mm x 660 Strands Silk Covered Lize Wire Twist Copper Enameled Wire For Winding



Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). The covering with silk can improve the winding efficiency, especially at high speed.



Test report: 0.05mm x 660 strands
Standard
1
2
Single wire diameter
0.055-0.069mm
0.058mm
0.061mm
Overall diameter
Max. 2.41mm
1.85mm
1.92mm
Pitch
40±3
√
√
Max resistance(Ω/Km at 20℃)
Max. 0.01552
0.01379
0.01381
Mini breakdown voltage
Min.950
2300
2400
Max pin holes fault/6m
Max.103
18
15
