China 0.1mm Awg 38 Insulated Stranded Copper Litz Wire for sale

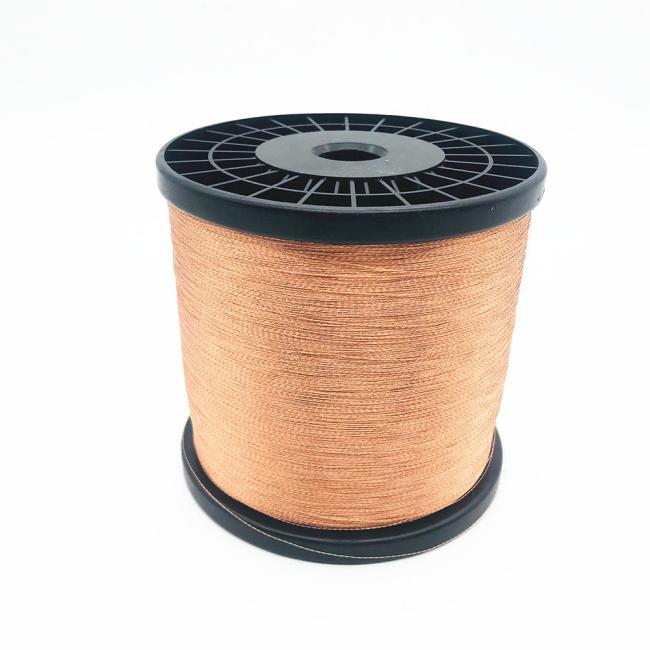

0.1mm Awg 38 Insulated Stranded Copper Litz Wire

Price Negotiable
Price: Negotiation
MOQ: 5kg
Delivery Time: 2-15 days
Brand: Ruiyuan
Product Description

awg 38 0.1mm*2 Strands Copper Twisted Litz Wire Insulated Stranded Wire



Litz wire employs a stranded wire with individually insulated conductors (forming abundle). The strands must be insulated from each other.


We also manufacture silk covered litz wire, mylar wire, profiled litz wire.





 Characteristics

Technical requests

Test Results

Conclusion

Sample

1

Surface

Good

OK

        OK
2 Breakdown Voltage ≥ 1.1 KV 2.4
3 Enamel Continuity ≤ 3 hole/6m 1
4 Outer diameter 0.107-0.125 mm 0.110-0.113
5 Inner diameter 0.1 mm±0.003 0.098-0.10mm
6 Conductor Resistance(20℃ Ω/Km) ≤1.191 1.101
7 Pitch 3.5±1 mm OK
8 Solderability 390±5℃/ 4 s OK
