0.07mmx50 Silk Covered USTC Stranded Fine Copper Wire
Price:
Negotiation
MOQ:
20kg
Delivery Time:
2-15 days
Brand:
Ruiyuan
Product Description

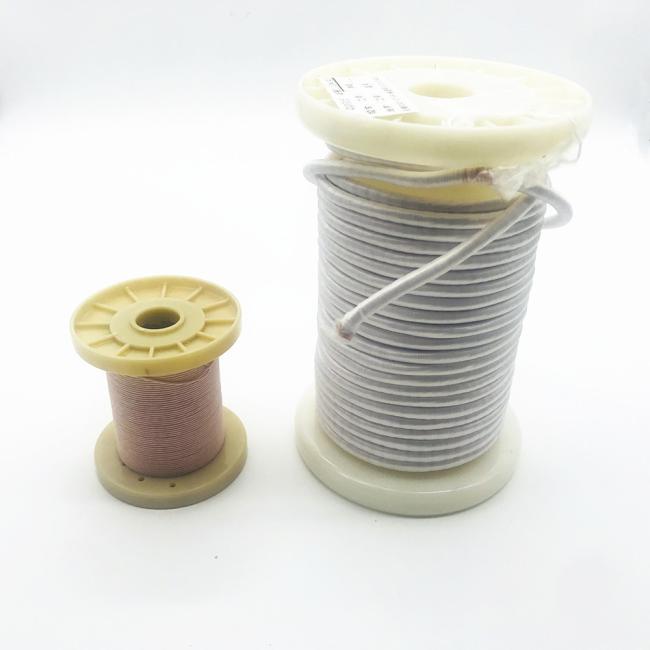

0.07mm * 50 Strands Silk Covered Litz Wire USTC Stranded Copper Litz Wire
Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). The covering with silk can improve the winding efficiency, especially at high speed.
| Test report: 0.05mm x 660 strands | Standard | Sample |
| Overall diameter of single wire | 0.082-0.093mm | 0.084-0.089mm |
| Overall diameter | Max. 0.88mm | 0.68mm |
| Pitch | 14±2 | √ |
| Max resistance(Ω/Km at 20℃) | Max. 0.0998 | 0.0883 |
| Mini breakdown voltage | Min.950 | 2200 |
| Max pin holes fault/6m | Max.35 | 6 |
