3UEW / 155 0.011mm Magnet Earphone Ultra Fine Enameled Copper Wire

Price Negotiable
Price: Negotiation
MOQ: 20gram
Delivery Time: 2-15 days
Brand: Ruiyuan
Product Description

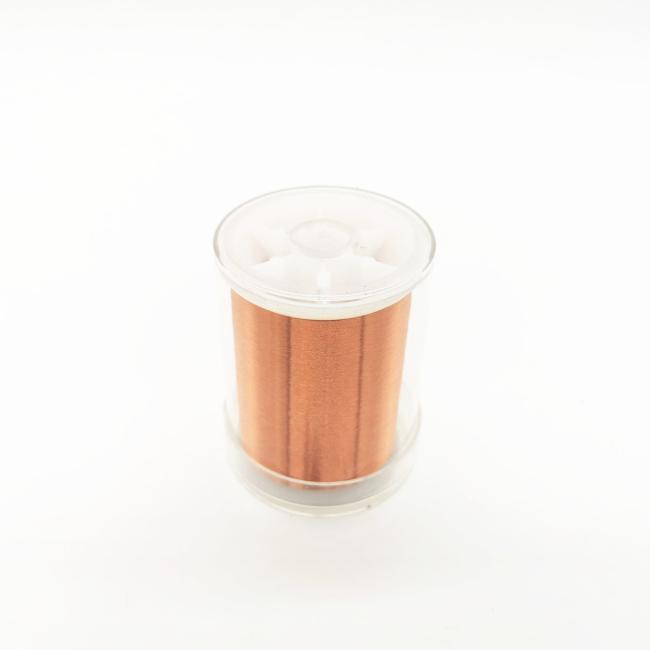

3UEW / 155 0.011mm Magnet Wire Ultra Fine Enameled Copper Wire For Earphone / Watch

We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...



                         Test Item

Unit

Standard Value

Reality Value

Min Ave Max

Conductor dimensions

mm 0.011±0.001 0.011 0.011 0.011

(Basecoat dimensions) Overall dimensions

mm



Max. 0.0135



0.0134



0.0134



0.0135

Insulation Film Thickness

mm Min0.002 0.0024 0.0024 0.0025

Bonding Film Thickness

mm



/



/



/



/

Continuity of covering

pcs. Max.60 Max.0

Flexibility

  / /

Adherence

  No crake good

Breakdown Voltage

V Min.250 Min.483

Resistance to Softening (Cut Through)



Continue 2 times pass



170℃/Good

(375℃±5℃)Solder test



s



Max. 2

Max.1.5

Bonding Strength

g

/ /

Electrical Resistance

Ω /m

150—157.6 154.01 154.98 155.10

Elongation

% Min. 3 10 10 11

Breaking Load

N

Min / / /

Surface appearance



Smooth coloury

Good
 Delivery Reels ount: 1



pcs.



Test Result: OK



Synthetic Evaluation : OK
