China Silk Covered Ustc 155 0.04mm * 420 Copper Litz Wire for sale

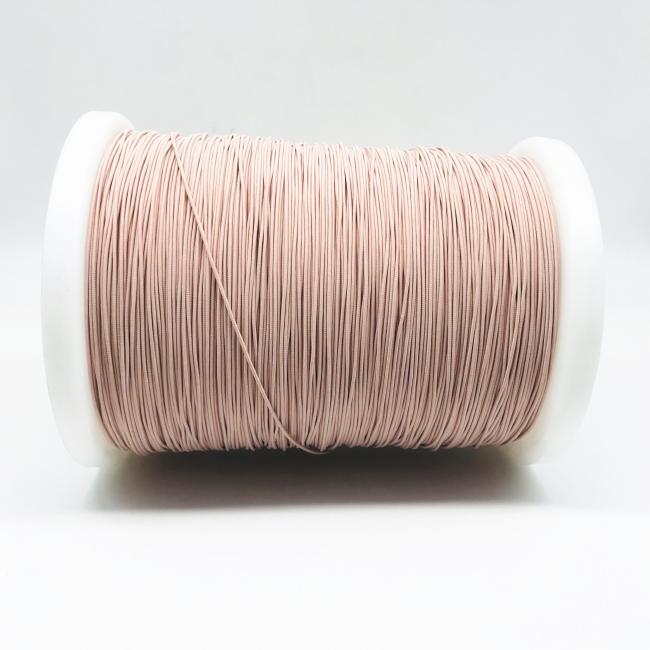

Silk Covered Ustc 155 0.04mm * 420 Copper Litz Wire

Price Negotiable
Price: Negotiation
MOQ: 20Kilogram/Kilograms
Delivery Time: 2-15 days
Brand: Ruiyuan
Product Description

USTC 155 0.04mm * 420 High Voltage Insulated Polyester Enameled Stranded Wire Silk Covered Litz Wire

We offer copper stranded wire, silk covered litz wire, taped litz wire and profiled litz wire.

Fast delivery within 5 days.

2-year quatlity assurance



Characteristics
Technical requests
Test Results
Conductor diameter(mm)
0.04±0.002
0.038
0.040
Overall conductor diameter(mm)
0.048-0.076
0.049
0.053
No. Of strands
420
√
√
Maximum outer diameter(mm)
2.17
1.17
1.23
Pitch(mm)
27±3

√
Maximum Resistance(Ω/m 20℃)
0.03731
0.0332
0.0331
Minimum Breakdown Voltage(V)
1100
2800
3100
Solderability
390±5℃, 9s
√
√
Pinhole(faults/6m)
Max. 41
6
4
