China Reach Ustc 0.08mm *24 Insulated Stranded High Frequency Litz Wire for sale

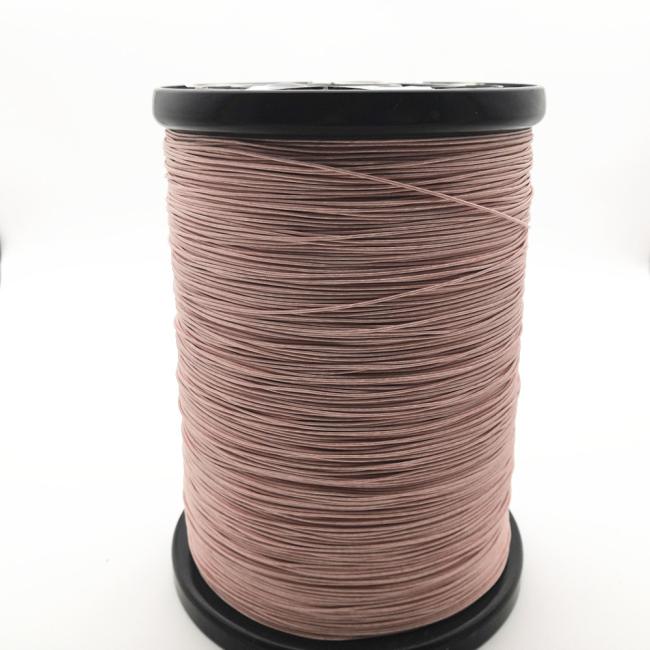

Reach Ustc 0.08mm *24 Insulated Stranded High Frequency Litz Wire

Price Negotiable
Price: Negotiation
MOQ: 20Kilogram/Kilograms
Delivery Time: 2-15 days
Brand: Ruiyuan
Product Description

USTC 0.08mm *24 High Frequency Insulated Stranded Copper Wire Silk Covered Litz Wire

We offer copper stranded wire, silk covered litz wire, taped litz wire and profiled litz wire.

Fast delivery within 5 days.

2-year quatlity assurance

Description
Conductor diameter*Strand number

2UDHTC-F
0.08*24





Single wire
Conductor diameter(mm)
0.080
Conductor diameter tolerance (mm)
±0.003
Minimal insulation thickness(mm)
0.005
Maximal overall diameter (mm)
0.103
Thermal Class
155


Strand Composition
Strand number
24
Pitch(mm)
20±3
Stranding direction
S






Insulation layer
Category
Nylon
UL
/
Material specs(mm*mm or D)
250+300
Times of Wrapping
2
Overlap(%) or thickness(mm),min
0.05
Wrapping direction
S




Characteristics
Max O. D(mm)
0.66
Max pin holes 个/6m
30
Max resistance (Ω/Km at20℃)
157.3
Mini breakdown voltage (≧V )
1100

Certificate
E229341
