20 Awg 0.3mm Self Adhesive Magnetic Copper Wire Hot Air Solderable 10kg

Price Negotiable
Price: Negotiation
MOQ: 10 Kilogram/Kilograms
Delivery Time: 2-15 days
Brand: Ruiyuan
Product Description

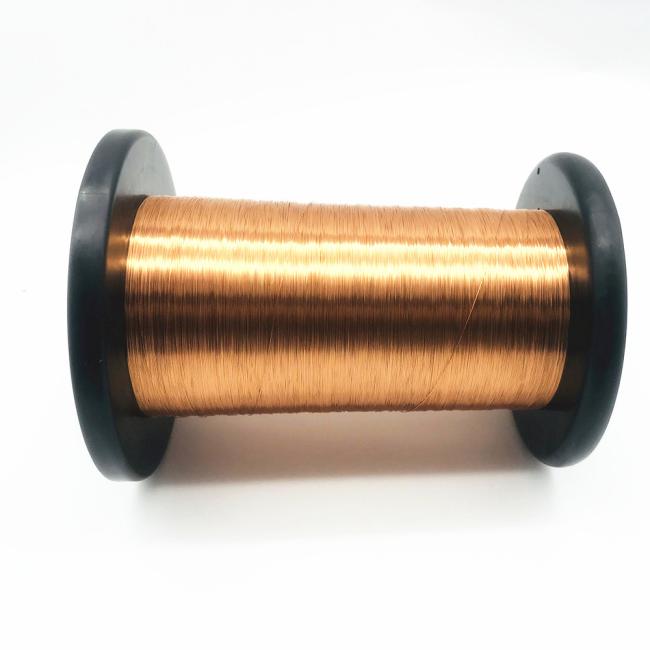

20 awg 2UEW155 0.3mm Self-adhesive Magnet Wire Hot Air Solderable 10kg

We are one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience.We have achieved the goal of "zero pinholes after stretching" for ten years. We rival the internationally renowned enameled wire brands for production, technology, raw materials.



Characteristics
Technical requests
Test Results
Conclusion
Sample 1
Sample 2
Surface
Good
OK
OK
OK
Conductor Diameter
03mm±0.003
0.3mm
03mm
OK
Basecoat dimensions
Max.0.337mm
0.334
0.334
OK
Insulation film thickness
Min. 0.011 mm
0.016
0.016
OK
Continuity (50V/30M)PCS
Max.60
0
OK
Flexibility
/
/
OK
Conductor Resistance
Max. 248.8 Ω/km
241.5
241.6
OK
Elongation
≥ 28%
31
31
OK
Breakdown Voltage
≥ 5000 V
6396
OK
Bonding strength (g)
Min. 150
230
OK
Adhesive
Coating layer is good
OK
Solder Ability
390± 5℃ 2 Sec Smooth
OK
