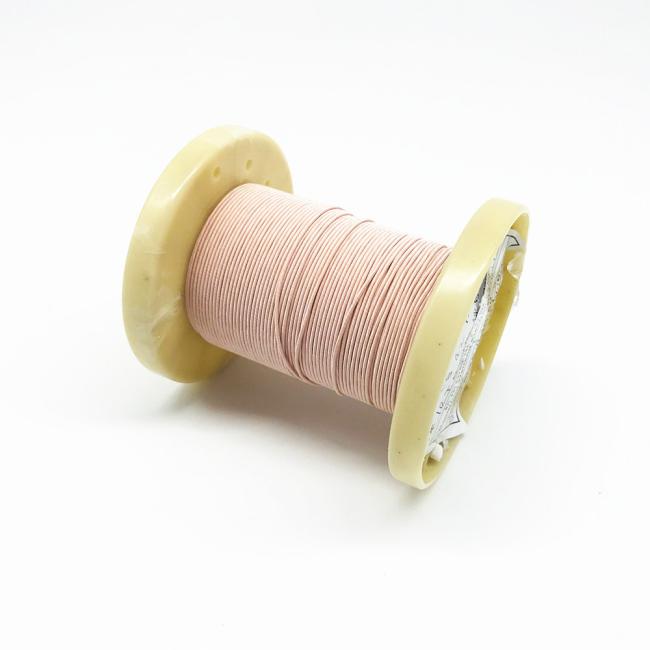

0.08mm *24 USTC155 Insulated Stranded Copper Litz Wire Silk Covered

Price Negotiable

Price: Negotiation

MOQ: 10 Kilogram/Kilograms

Delivery Time: 2-15 days

Brand: Ruiyuan

Product Description

0.08mm *24 USTC155 Insulated Stranded Copper Wire Silk Covered Litz Wire

Litz wire employs a stranded wire with individually insulated conductors (forming abundle). Our factory can customize various types of Litz wire, which is one of our company's main products and best-selling products,including silk covered wire, Mylar wire, etc.

Description Conductor diameter*Strand number		2UDHTC-F 0.08*24
Single wire	Conductor diameter(mm)	0.080
	Conductor diameter tolerance (mm)	±0.003
	Minimal insulation thickness(mm)	0.005
	Maximal overall diameter (mm)	0.103
	Thermal Class	155
Strand Composition	Strand number	24
	Pitch(mm)	20±3
	Stranding direction	S
Insulation layer	Category	Nylon
	UL	/
	Material specs(mm*mm or D)	250+300
	Times of Wrapping	2
	Overlap(%) or thickness(mm),min	0.05
	Wrapping direction	S
Characteristics	Max O. D(mm)	0.66
	Max pin holes 个/6m	30
	Max resistance (Ω/Km at20℃)	157.3
	Mini breakdown voltage (≧V )	1100
	Certificate	E229341
